SF21G
SF21G is Axial Leaded Super Fast Rectifiers manufactured by Formosa MS.
Axial Leaded Super Fast Rectifiers

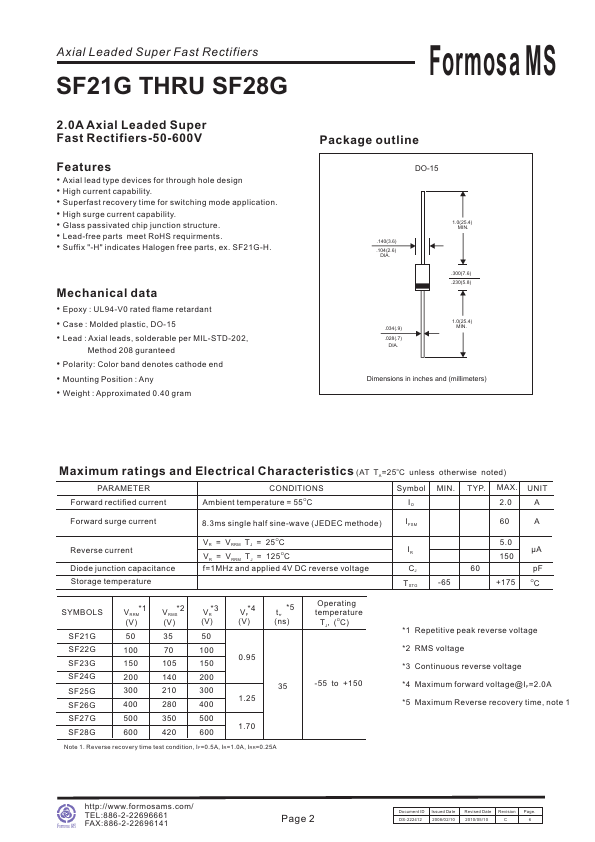

SF21G THRU SF28G
2.0A Axial Leaded Super Fast Rectifiers-50-600V
Features
- Axial lead type devices for through hole design
- High current capability.
- Superfast recovery time for switching mode application.
- High surge current capability.
- Glass passivated chip junction structure.
- Lead-free parts meet RoHS requirments.
- Suffix "-H" indicates Halogen free parts, ex. SF21G-H.
Mechanical data
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, DO-15
- Lead : Axial leads, solderable per MIL-STD-202,
Method 208 guranteed
- Polarity: Color band denotes cathode end
- Mounting Position : Any
- Weight : Approximated 0.40 gram
