MB8264-20 - NMOS Dynamic Random Access Memory

This page provides the datasheet information for the MB8264-20, a member of the MB8264-15 NMOS Dynamic Random Access Memory family.

Datasheet Summary

Description

The Fujitsu MB8264 is a fully decoded, dynamic NMOS random access memory organized as 65536 one-bit words.

Features

  • .65,536 x 1 RAM,16-pln package.
  • Sillcon-gate, Double Poly NMOS, single transistor cell.
  • Row access time: 150ns Max (MB8264-15) 200ns Max (MB8264-20).
  • Cycle time: 270ns Min (MB8264-15) 330ns Min (MB8264-20).
  • Low power: 22 mW Max Standby 275 mW Max Active (MB8264-15) 248 mW Max Active (MB8264-20).
  • :!:10% tolerance on +5V Supply.
  • On-chlp substrate bias generator.
  • All Inputs TTL compatible, low capacitive load.
  • Three-state TTL.

📥 Download Datasheet

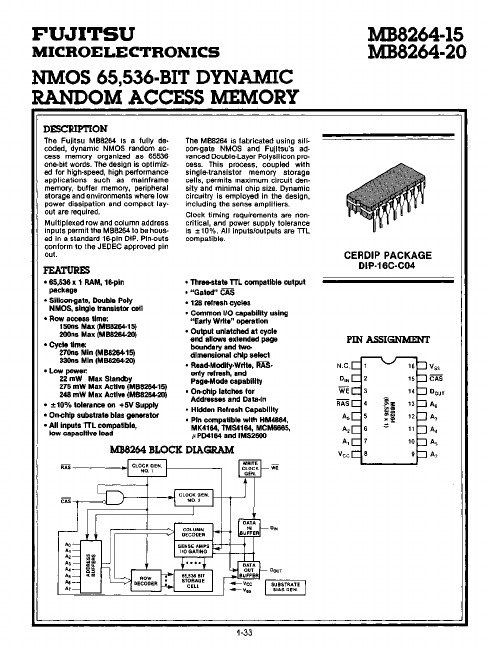

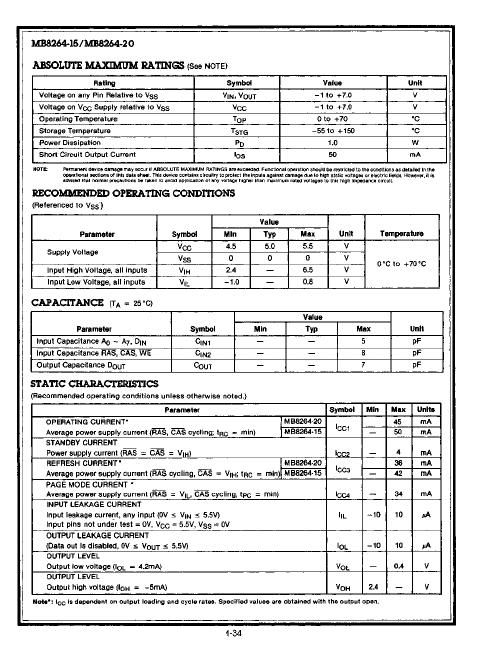

Datasheet preview – MB8264-20

Datasheet Details

Part number MB8264-20
Manufacturer Fujitsu
File Size 198.20 KB
Description NMOS Dynamic Random Access Memory
Datasheet download datasheet MB8264-20 Datasheet

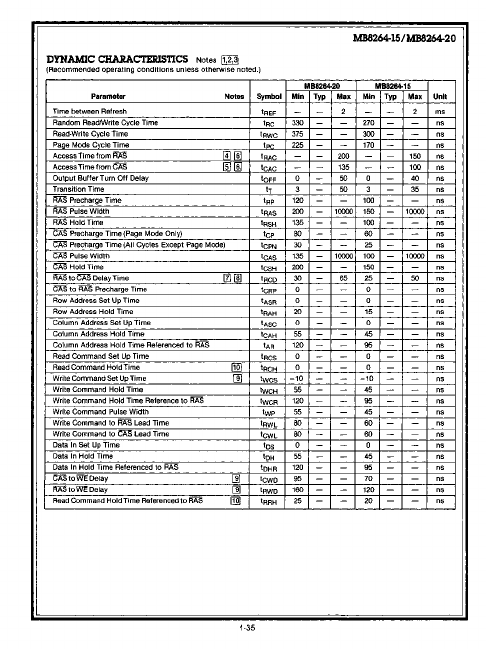

Additional preview pages of the MB8264-20 datasheet.
