MB8417 - CMOS STATIC RANDOM ACCESS MEMORY

📥 Download Datasheet

Datasheet preview – MB8417

Datasheet Details

Part number MB8417
Manufacturer Fujitsu
File Size 84.77 KB
Description CMOS STATIC RANDOM ACCESS MEMORY
Datasheet download datasheet MB8417 Datasheet

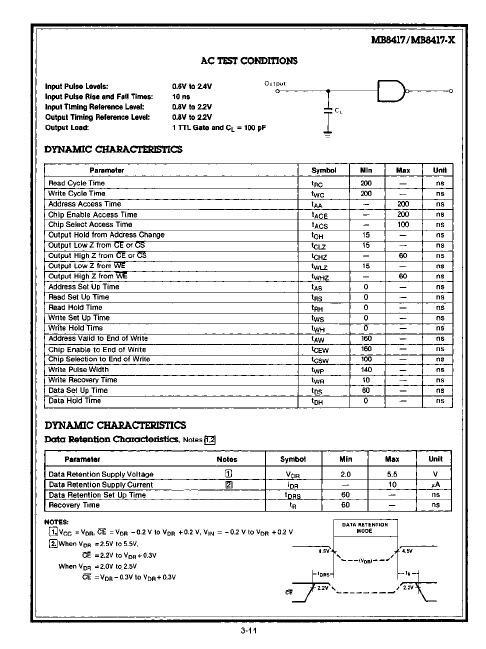

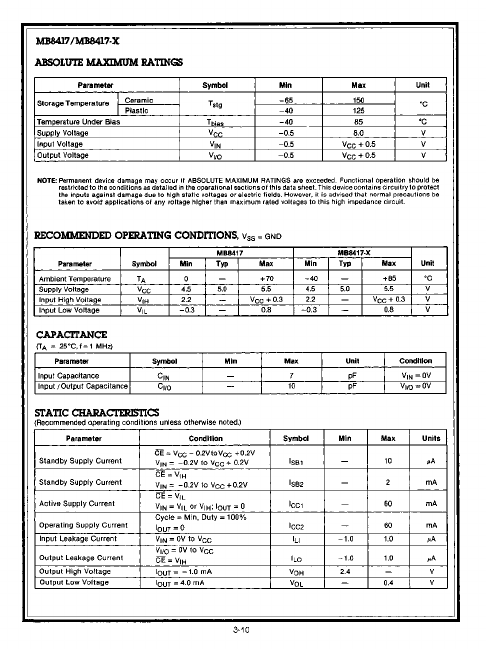

Additional preview pages of the MB8417 datasheet.

📁 Similar Datasheet

  • MB84 - Single Phase Bridge Rectifier (Micro Commercial Components)
  • MB840 - Socket 478 Pentium 4 Industrial Motherboard User Manual (ETC)
  • MB84256-10LP - CMOS 256K SRAM (ETC)
  • MB8441-45PFQ - CMOS 64K-Bit Dual Port Static RAM (ETC)
  • MB84SD23280E-70PBS - 64M (X16) FLASH MEMORY 8M (X16) SRAM (AMD)
  • MB84SD23280EFA - 64M (X16) FLASH MEMORY 8M (X16) SRAM (AMD)
  • MB84SD23280EFE-70 - 64M (X16) FLASH MEMORY 8M (X16) SRAM (AMD)
  • MB84SF6H6H6L2-70 - FLASH MEMORY (AMD)
  • MB84VA2000 - (MB84VA2000 / MB84VA2001) 8M (X 8) FLASH MEMORY & 2M (X 8) STATIC RAM (Fujitsu Media Devices)
  • MB84VA2002 - (MB84VA2002 / MB84VA2003) 8M (x 8/x 16) FLASH MEMORY & 2M (x 8) STATIC RAM (Fujitsu Media Devices)
Other Datasheets by Fujitsu

Full PDF Text Transcription

Click to expand full text

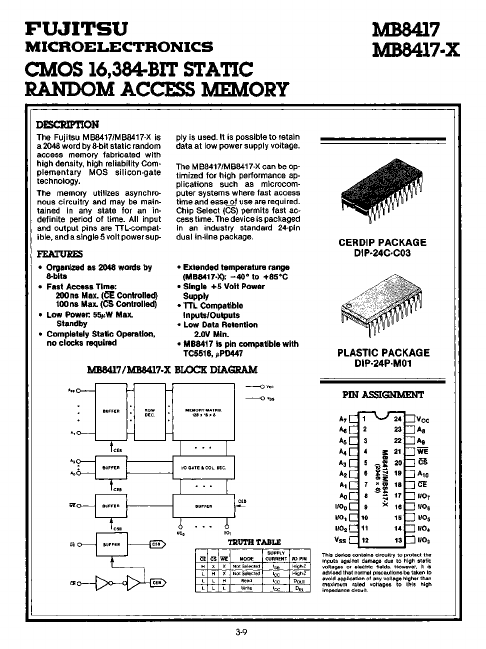

FUJITSU MICROELECTRONICS CMOS 16,384-BIT STATIC RANDOM ACCESS !JIEM:ORY MB8417 MB8417-X DfSCRIPTION The Fujitsu MB84171MB8417-X is a 2048 word by 8-bit static random access memory fabricated with high density, high reliability Complementary MOS silicon-gate technology_ The memory utilizes asynchronous circuitry and may be maintained in any state for an indefinite period of time. All input and output pins are TIL-compatible, and a single 5 volt power sup- ply is used. It is possible to retain data at low power supply voltage. The MB8417/MB8417-X can be optimized for high performance applications such as microcomputer systems where fast access time and ease of use are required. Chip Select (CS) permits fast access time.
