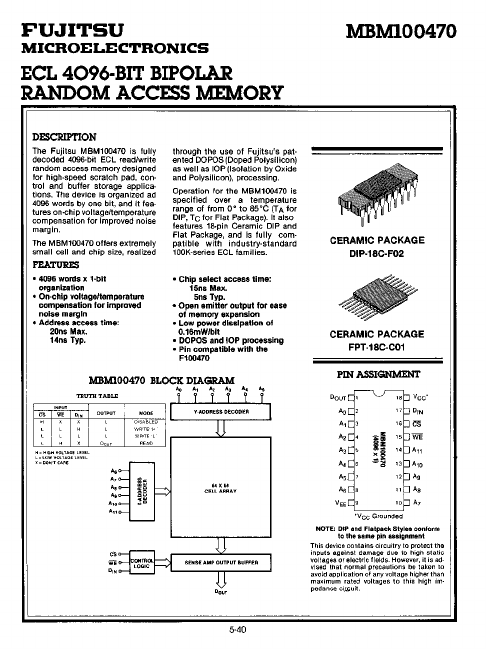

MBM100470
DESCRIPTION
The Fujitsu MBM100470 is fully decoded 4096-bit ECl read/write random access memory designed for high-speed scratch pad, control and buffer storage applications. The device is organized ad 4096 words by one bit, and it features on-chip voltage/temperature pensation for improved noise margin.
The MBM100470 offers extremely small cell and chip size, realized
FEATURES
- 4096 words x 1-bit organization
- On-chip voltage/temperature pensation for improved noise margin
- Address access time: 20ns Max. 14ns Typ. through the use of Fujitsu's patented DOPOS (Doped Polysilicon) as well as l OP (Isolation by Oxide and Polysilicon), processing.
Operation for the MBM100470 is specified over a temperature range of from O' to 85'C (TA for DIP, TC for Flat Package). It also features
18-pin Ceramic DIP and Flat Package, and is fully patible with industry-standard 100K-series ECl families.
- Chip select access time: 15ns Max_ 5ns Typ_
- Open emitter output for ease of memory expansion
- low...
