GFD 3401
The 3401 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications.| Part No. | 3401 |
|---|---|
| Datasheet | 3401 Download |
| Manufacturer | GFD |
| Description | MOSFET |
| Buy | Stock & Price |
DESCRIPTION
GENERAL FEATURES
● VDS = -30V,ID = -4.2A RDS(ON) < 130mΩ @ VGS=-2.5V RDS(ON) < 75mΩ @ VGS=-4.5V RDS(ON) < 65mΩ @ VGS=-10V● High Power and current handing capability
● Lead free product is acquired

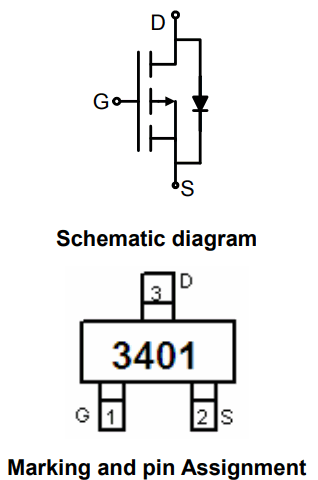

● Surface Mount Package D G S Schematic diagram Marking and pin Assignment Application
●PWM applications
●Load switch
●Power management SOT-23 top view Package Marking And Ordering Information Device Marking Device Device Package 3401 3401 SOT-23 Reel Size Ø180mm Tape width 8 mm Quantity 3000 units
ABSOLUTE MAXIMUM RATINGS
(TA=25℃unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Drain Current-Continuous ID Drain Current-Pulsed (Note 1) IDM Maximum Power Dissipation PD Operating Ju
