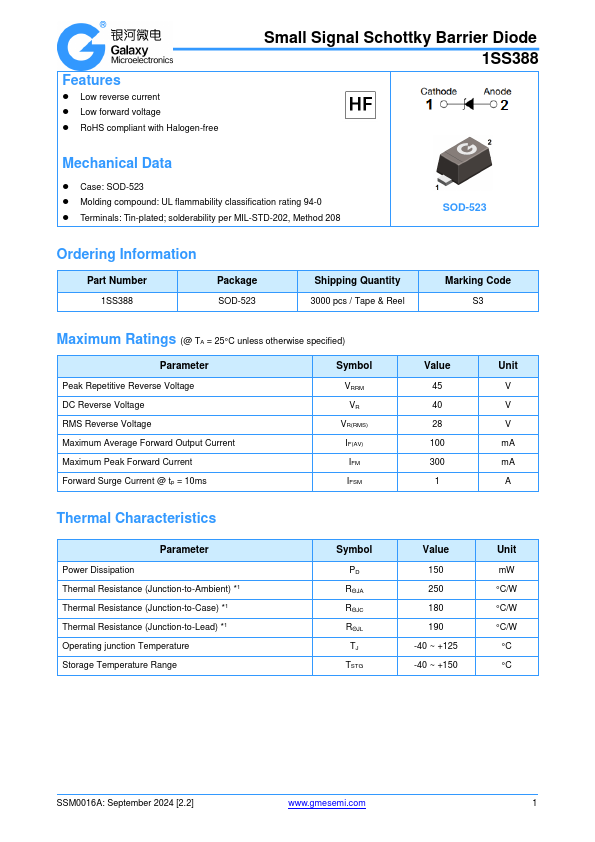

1SS388
1SS388 is Small Signal Schottky Barrier Diode manufactured by Galaxy Microelectronics.
Features
- Low reverse current
- Low forward voltage
- Ro HS pliant with Halogen-free
Small Signal Schottky Barrier Diode 1SS388
Mechanical Data
- Case: SOD-523
- Molding pound: UL flammability classification rating 94-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208

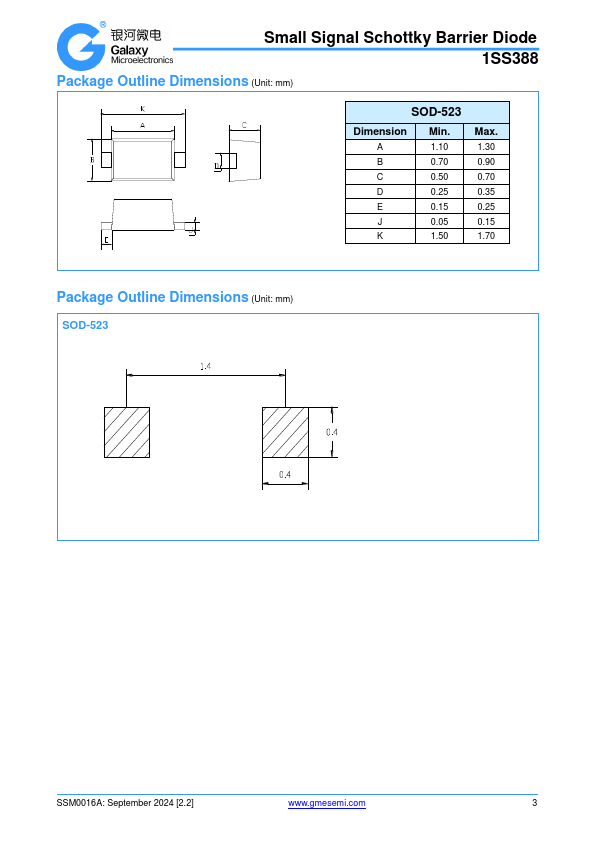

SOD-523
Ordering Information
Part Number 1SS388
Package SOD-523
Shipping Quantity 3000 pcs / Tape & Reel
Marking Code S3
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Peak Repetitive Reverse Voltage DC Reverse Voltage RMS Reverse Voltage Maximum Average Forward Output Current Maximum Peak Forward Current Forward Surge Current @ tp = 10ms
Symbol VRRM VR VR(RMS) IF(AV) IFM IFSM
Value 45 40 28 100 300 1
Unit V V V m A m A A
Thermal Characteristics
Parameter Power Dissipation Thermal Resistance (Junction-to-Ambient)
- 1 Thermal Resistance (Junction-to-Case)
- 1 Thermal Resistance (Junction-to-Lead)
- 1 Operating junction Temperature Storage Temperature Range
Symbol PD RΘJA RΘJC RΘJL TJ TSTG
Value 150 250 180 190
-40 ~ +125 -40 ~ +150
Unit m W °C/W °C/W °C/W °C °C
SSM0016A: September 2024 [2.2]
.gmesemi.
Small Signal Schottky Barrier Diode 1SS388

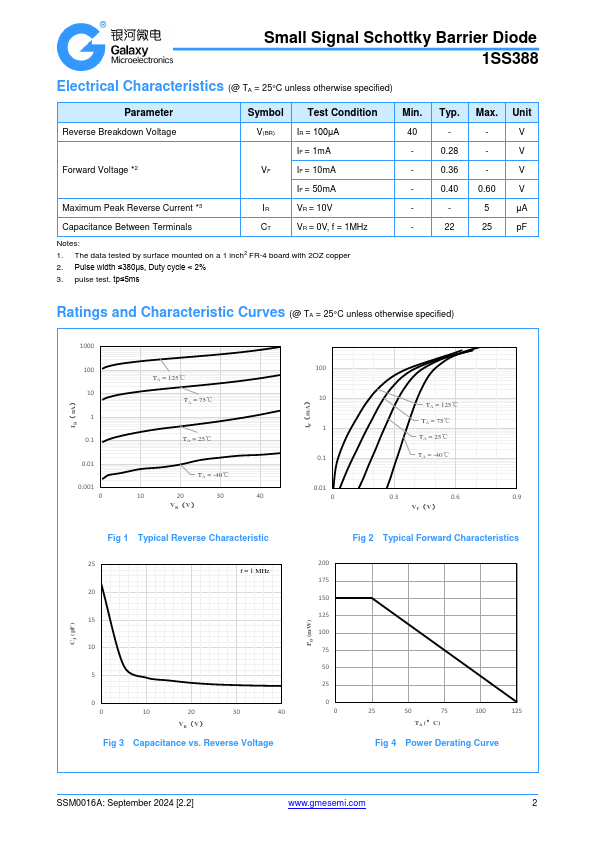

Electrical Characteristics (@ TA = 25°C unless otherwise specified)
Parameter
Symbol Test Condition
Reverse Breakdown Voltage
V(BR)
IR = 100μA
Forward...
