2SC2412 - Silicon Epitaxial Planar Transistor

Galaxy Microelectronics

Key Features

Low Cob. Cob=2.0pF.
Complementary to 2SA1037 Pb Lead-free Production specification 2SC2412.

2SC2412 silicon epitaxial planar transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	2SC2412
Manufacturer	Galaxy Microelectronics
File Size	324.99 KB
Description	Silicon Epitaxial Planar Transistor
Datasheet	2SC2412 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SC2412	General Purpose Transistors	Leshan Radio Company
2SC2412	NPN Epitaxial Planar Transistor	SeCoS
2SC2412	BIPOLAR TRANSISTORS	Rectron
2SC2412	TRANSISTOR	Jin Yu Semiconductor
2SC2412	NPN Transistor	JCST

Other Datasheets by Galaxy Microelectronics

Part Number	Description
2SC2411	Silicon Transistor
2SC2073	NPN Triple Didduesd Planar Silicon Transistor
2SC2712	Silicon NPN Transistor
2SC2714	Silicon Transistor
2SC2715	NPN Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

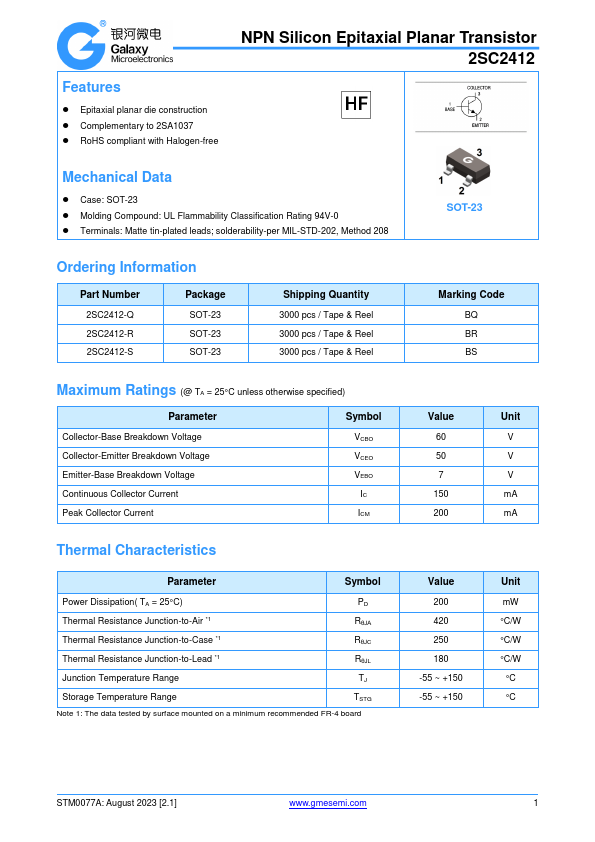

Silicon Epitaxial Planar Transistor FEATURES  Low Cob.Cob=2.0pF  Complementary to 2SA1037 Pb Lead-free Production specification 2SC2412 APPLICATIONS  NPN Silicon Epitaxial Planar Transistor ORDERING INFORMATION Type No. Marking 2SC2412 BQ/BR/BS SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC PC Tj,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Dissipation Junction and Storage Temperature 60 50 7 150 200 -55 to +150 Units V V V mA mW ℃ C020 Rev.A www.gmesemi.
