2SC2412 Datasheet NPN Silicon Epitaxial Transistors

Manufacturer: Micro Commercial Components

📥 Download Datasheet

2SC2412 npn silicon epitaxial transistors by Micro Commercial Components - Datasheet Preview

Datasheet Details

Part number	2SC2412
Manufacturer	Micro Commercial Components
File Size	607.29 KB
Description	NPN Silicon Epitaxial Transistors
Datasheet	2SC2412 Datasheet

Overview

2SC2412.

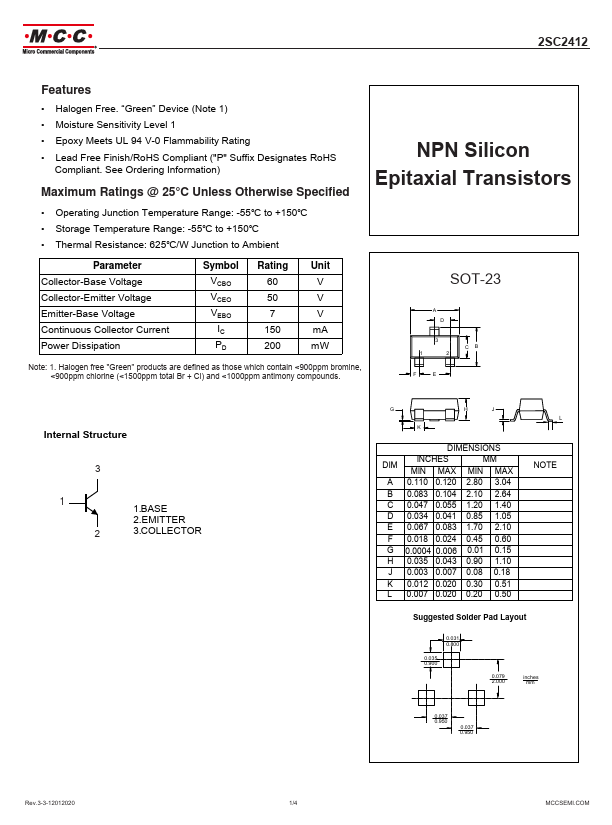

Key Features

Halogen Free. “Green” Device (Note 1).
Moisture Sensitivity Level 1.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified NPN Silicon Epitaxial Transistors.
Operating Junction Temperature Range: -55℃ to +150℃.
Storage Temperature Range: -55℃ to +150℃.
Thermal Resistance: 625℃/W Junction to Ambien.
