2SC2712 - Silicon NPN Transistor

Key Features

  • Low noise：NF=1dB (Typ. ),10 dB(Max).
  • Complementary to 2SA1162 Pb Lead-free.
  • High voltage and high current.
  • Excellent hFE linearity 2SC2712.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC2712 Silicon NPN Transistor Toshiba Semiconductor
2SC2712 NPN TRANSISTOR AiT Semiconductor
2SC2712 NPN Transistor INCHANGE
2SC2712 AUDIO FREQUENCY AMPLIFIER NPN TRANSISTOR UTC
2SC2712 Silicon NPN Transistors Weitron Technology

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SC2714 Silicon Transistor
2SC2715 NPN Transistor
2SC2073 NPN Triple Didduesd Planar Silicon Transistor
2SC2411 Silicon Transistor
2SC2412 Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

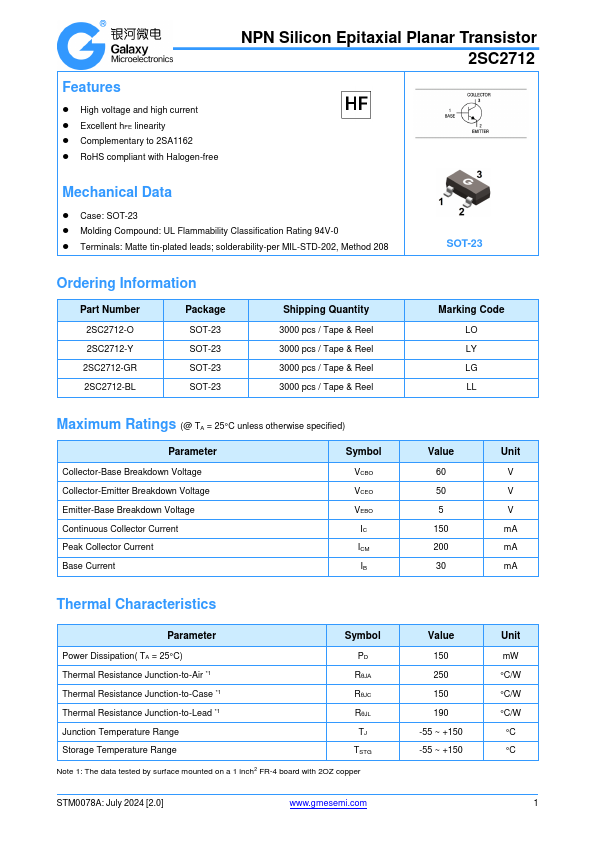

Production specification Silicon Epitaxial Planar Transistor FEATURES  Low noise：NF=1dB (Typ.),10 dB(Max)  Complementary to 2SA1162 Pb Lead-free  High voltage and high current  Excellent hFE linearity 2SC2712 APPLICATIONS  Audio frequency general purpose amplifier applications SOT-23 ORDERING INFORMATION Type No. Marking 2SC2712 LO/LY/LG/LL Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 60 VCEO Collector-Emitter Voltage 50 VEBO Emitter-Base Voltage 5 IC Collector Current -Continuous 150 IB Base current 30 PC Collector Dissipation 150 Tj,Tstg Junction and Storage Temperature -55 to +125 Units V V V mA mA mW ℃ C021 Rev.A www.gmesemi.
