Galaxy Century Microelectronics 2SC3052
NPN Small Signal Surface Mount Transistor
| Part No. | 2SC3052 |
|---|---|
| Datasheet | 2SC3052 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Small Signal Surface Mount Transistor |
| Buy | Stock & Price |

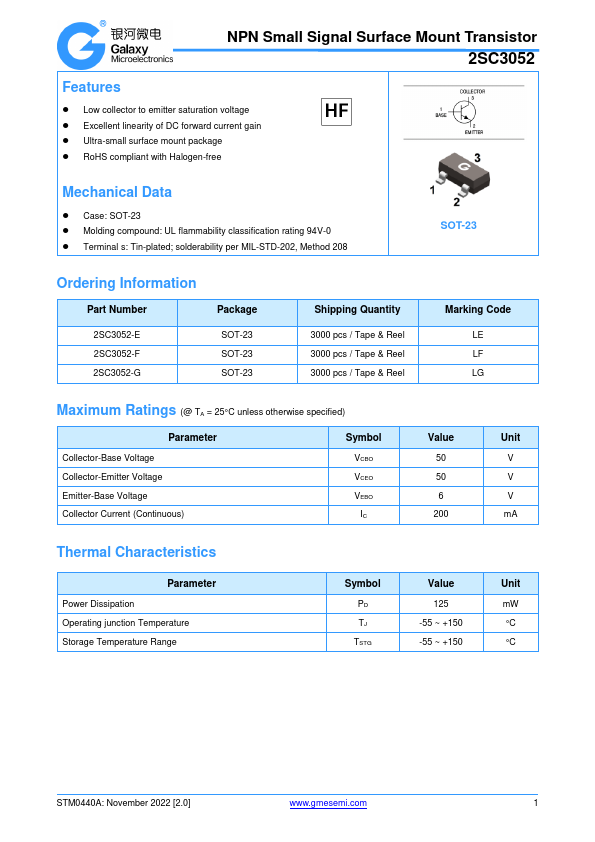

FEATURES
● Low collector to emitter saturation voltage● Excellent linearity of DC forward current gain
● Ultra-small surface mount package
● RoHS compliant with Halogen-free
MECHANICAL DATA
● Case: SOT-23● Molding compound: UL flammability classification rating 94V-0
● Terminal s: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number 2SC3052-E 2SC3052-F 2SC3052-G Package SOT-23 SOT-23 SOT-23 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code LE LF LG
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Symbol VCBO VCEO VEBO IC Value 50 50 6 200 Unit V V V mA Thermal Characteristics Parameter Power Dissipation Operating junction Temperature Storage Temperature Range Symbol PD TJ TSTG Value 125 -55 ~ +150 -55 ~ +150 Unit mW °C °C STM0440A: November 2022 [2.0] 1 NPN Small Signal Surface Mount Transistor 2SC3052ELECTRICAL CHARACTERISTICS

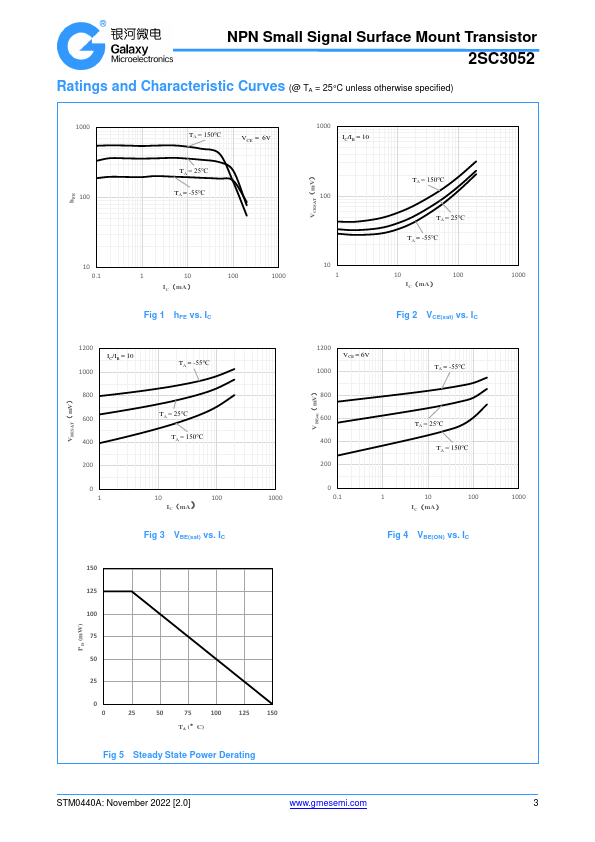

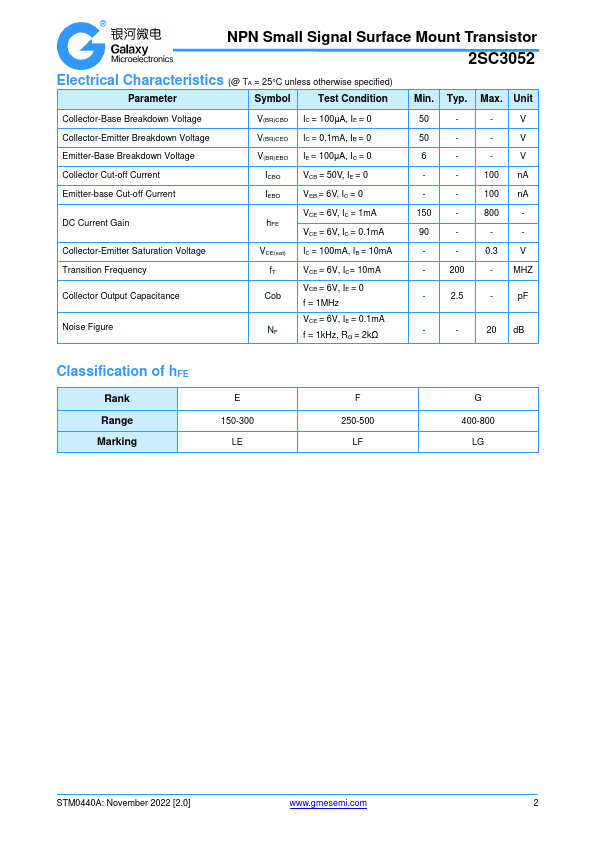

(@ TA = 25°C unless otherwise specified) Parameter Symbol Test Condition Min.
