2SC4102 - Silicon Transistor

Galaxy Microelectronics

Key Features

Excellent hFE linearity.
Power dissipation:PCM=200mW Pb Lead-free Production specification 2SC4102.

2SC4102 silicon transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	2SC4102
Manufacturer	Galaxy Microelectronics
File Size	115.11 KB
Description	Silicon Transistor
Datasheet	2SC4102 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SC4102	High-voltage Amplifier Transistor	Rohm
2SC4102	High-voltage Amplifier Transistor	Kexin
2SC4102	TRANSISTOR	Jin Yu Semiconductor
2SC4100	NPN Silicon Transistor	ROHM
2SC4104	PNP/NPN Epitaxial Planar Silicon Transistors	Sanyo Semicon Device

Other Datasheets by Galaxy Microelectronics

Part Number	Description
2SC4115	NPN Epitaxial Planar Silicon Transistor
2SC4116	Transistor
2SC4155	Silicon Epitaxial Planar Transistor
2SC4155A	Silicon Epitaxial Planar Transistor
2SC4180	Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

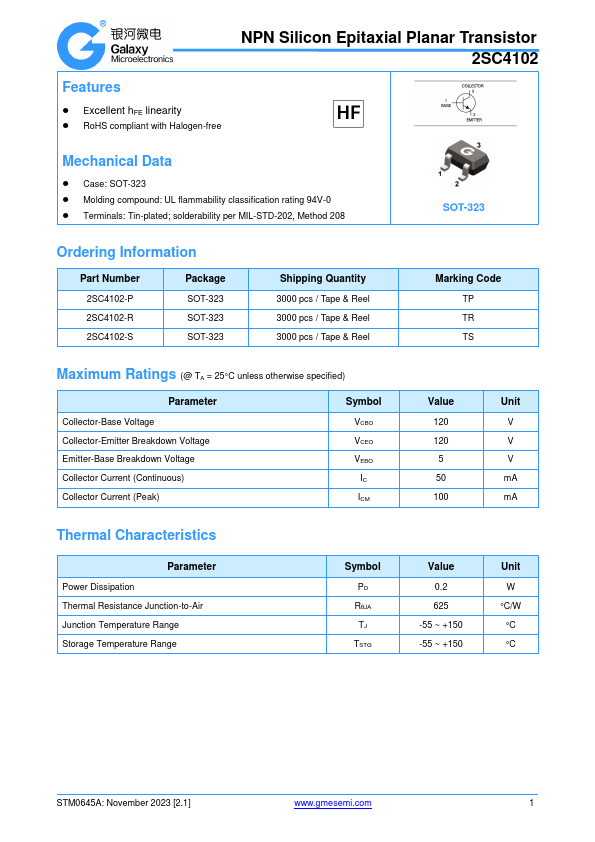

Silicon Epitaxial Planar Transistor FEATURES  Excellent hFE linearity.  Power dissipation:PCM=200mW Pb Lead-free Production specification 2SC4102 APPLICATIONS  NPN Silicon Epitaxial Planar Transistor. ORDERING INFORMATION Type No. Marking 2SC4102 TP/TR/TS SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC PC Tj,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Dissipation Junction and Storage Temperature 120 120 5 50 200 -55 to +150 Units V V V mA mW ℃ F037 Rev.A www.gmesemi.
