2SC4102FRA - High-voltage Amplifier Transistor

ROHM

Key Features

1)High breakdown voltage. (BVCEO=120V) 2)Complements the 2SA1579 FRA lOutline 　 SOT-323 　 SC-70 UMT3 lInner circuit Datasheet AEC-Q101 Qualified 　　　　　 l.

2SC4102FRA high-voltage amplifier transistor by ROHM - Datasheet Preview

Datasheet Details

Part number	2SC4102FRA
Manufacturer	ROHM
File Size	1.49 MB
Description	High-voltage Amplifier Transistor
Datasheet	2SC4102FRA Datasheet

Full PDF Text Transcription for 2SC4102FRA (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for 2SC4102FRA. For precise diagrams, and layout, please refer to the original PDF.

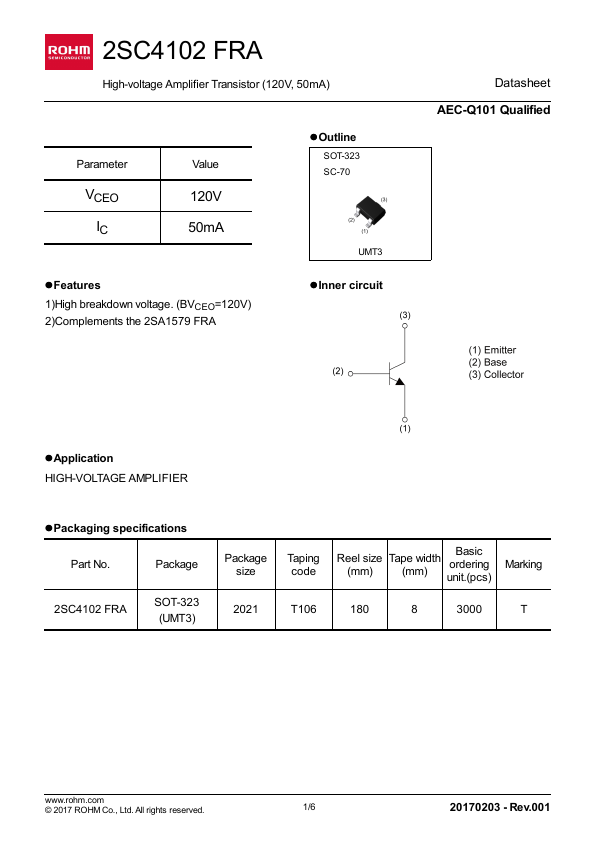

2SC4102 FRA High-voltage Amplifier Transistor (120V, 50mA) Parameter VCEO IC Value 120V 50mA lFeatures 1)High breakdown voltage. (BVCEO=120V) 2)Complements the 2SA1579 FR...

View more extracted text

es 1)High breakdown voltage. (BVCEO=120V) 2)Complements the 2SA1579 FRA lOutline SOT-323 SC-70 UMT3 lInner circuit Datasheet AEC-Q101 Qualified lApplication HIGH-VOLTAGE AMPLIFIER lPackaging specifications Part No. Package 2SC4102 FRA SOT-323 (UMT3) Package size Taping code Reel size (mm) Tape width (mm) Basic ordering unit.(pcs) Marking 2021 T106 180 8 3000 T www.rohm.com © 2017 ROHM Co., Ltd. All rights reserved. 1/6 20170203 - Rev.
