2SC4116 - Transistor

Key Features

  • Excellent hFE linearity.
  • High voltage and current.
  • Complementary to 2SA1586.
  • Small package. Pb Lead-free 2SC4116.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC4116 NPN Transistor SeCoS
2SC4116 NPN Transistors Kexin
2SC4116 NPN Transistor Toshiba Semiconductor
2SC4116 NPN Transistor INCHANGE
2SC4116-BL NPN Transistor MCC

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SC4115 NPN Epitaxial Planar Silicon Transistor
2SC4102 Silicon Transistor
2SC4155 Silicon Epitaxial Planar Transistor
2SC4155A Silicon Epitaxial Planar Transistor
2SC4180 Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

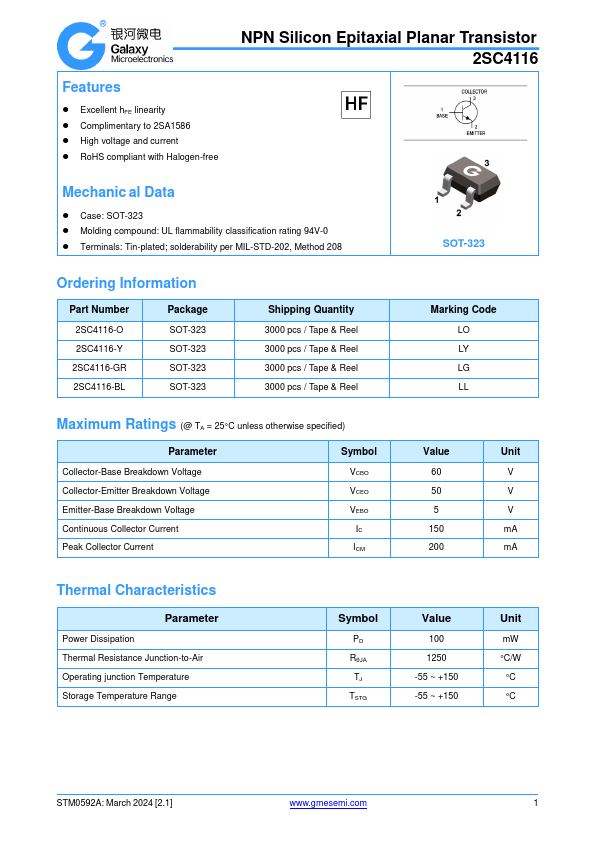

Production specification Silicon Epitaxial Planar Transistor FEATURES  Excellent hFE linearity.  High voltage and current.  Complementary to 2SA1586.  Small package. Pb Lead-free 2SC4116 APPLICATIONS  NPN Silicon Epitaxial Planar Transistor.  Switching and amplification. ORDERING INFORMATION Type No. Marking 2SC4116 LO/LY/LG/LL SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC PC Tstg Tj, Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Dissipation Storage Temperature Junction Temperature 60 50 5 150 100 -55 to +125 125 Units V V V mA mW ℃ ℃ F038 Rev.A www.gmesemi.
