Complementary to 2SA1586
2SC4116
Transistor (NPN)
C
LX
X:Rank
B
E

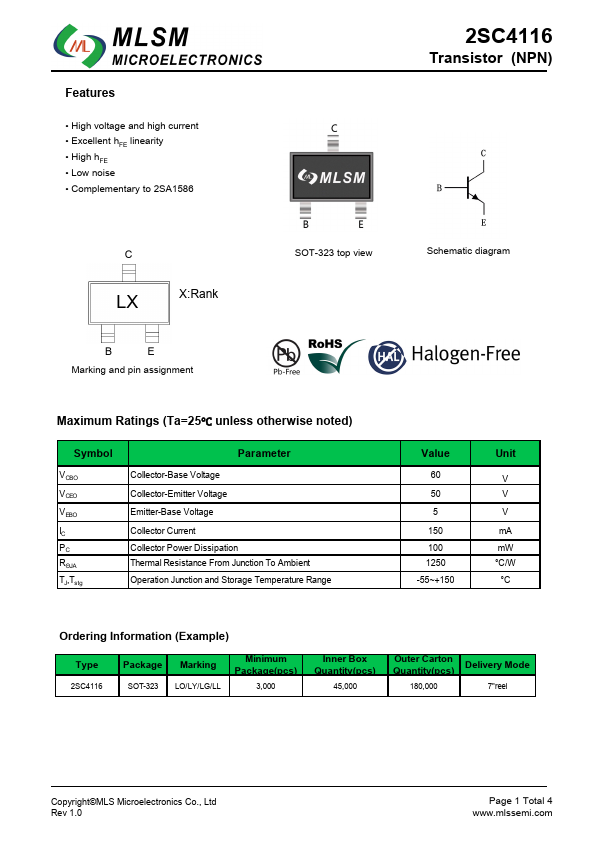

Marking and pin assignment
SOT-323 top view
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambie.
Full PDF Text Transcription for 2SC4116 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SC4116. For precise diagrams, tables, and layout, please refer to the original PDF.
Features • High voltage and high current • Excellent hFE linearity • High hFE • Low noise • Compleme...
View more extracted text
ntary to 2SA1586 2SC4116 Transistor (NPN) C LX X:Rank B E Marking and pin assignment SOT-323 top view Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Schematic diagram Value 60 50 5 150 100 1250 -55~+150 Unit V V V mA mW °C/W °C Ordering Information (Example) Type 2SC4116 Package SOT-323 Marking LO/LY/LG/LL Minimum Package(pcs) 3,000 Inner Box Quantity(pcs) 45,000 Outer Carton Quantity(pcs) 180,000 Delivery Mode 7"

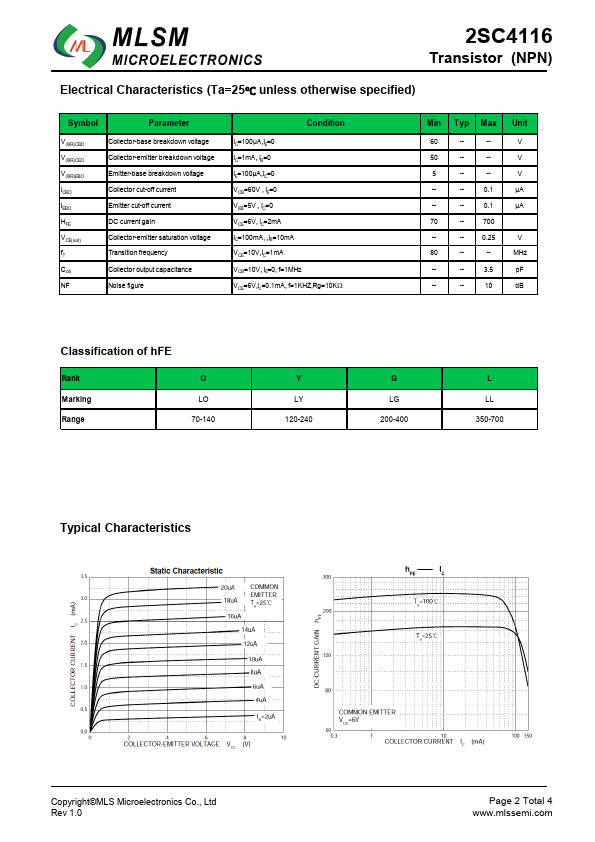

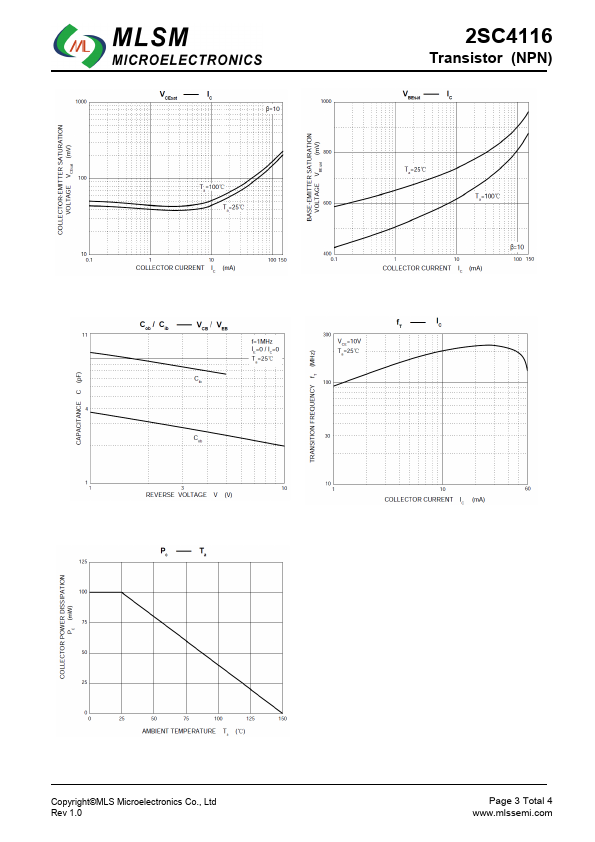

2SC4116 Datasheet
