Galaxy Century Microelectronics 2SC4617
NPN Small Signal Surface Mount Transistor
| Part No. | 2SC4617 |
|---|---|
| Datasheet | 2SC4617 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Small Signal Surface Mount Transistor |
| Buy | Stock & Price |

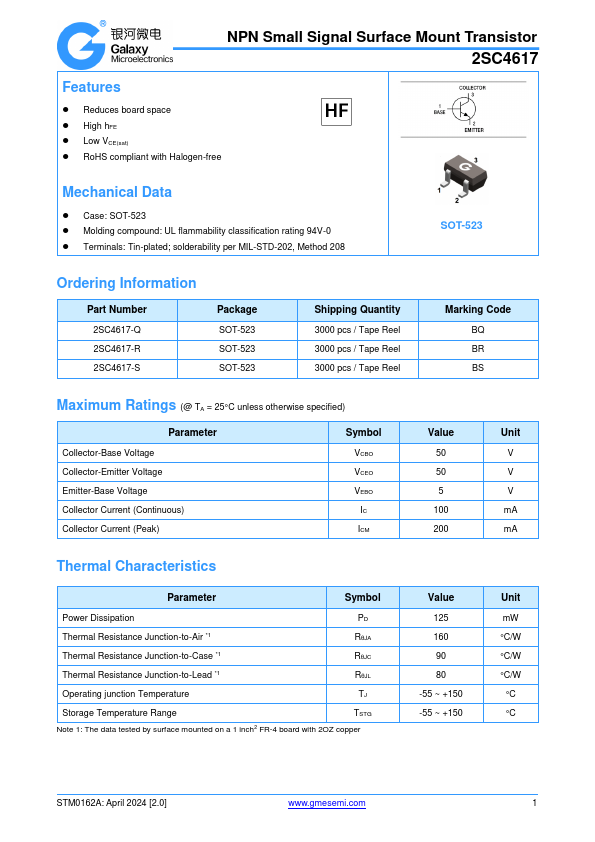

FEATURES
● Reduces board space● High hFE
● Low VCE(sat)
● RoHS compliant with Halogen-free
MECHANICAL DATA
● Case: SOT-523● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-523 Ordering Information Part Number 2SC4617-Q 2SC4617-R 2SC4617-S Package SOT-523 SOT-523 SOT-523 Shipping Quantity 3000 pcs / Tape Reel 3000 pcs / Tape Reel 3000 pcs / Tape Reel Marking Code BQ BR BS
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Collector Current (Peak) Symbol VCBO VCEO VEBO IC ICM Value 50 50 5 100 200 Unit V V V mA mA Thermal Characteristics Parameter Symbol Power Dissipation PD Thermal Resistance Junction-to-Air *1 RθJA Thermal Resistance Junction-to-Case *1 RθJC Thermal Resistance Junction-to-Lead *1 RθJL Operating junction Temperature TJ Storage Temperature Range TSTG Note 1: The data tes...
