Unisonic Technologies 2SC4617
NPN Silicon Transistor
| Part No. | 2SC4617 |
|---|---|
| Datasheet | 2SC4617 Download |
| Manufacturer |  Unisonic Technologies |
| Description | NPN Silicon Transistor |
| Buy | Stock & Price |
FEATURES
* Low Cob Cob=2.0pF (typ.) * Complements the UTC 2SA1774● ORDERING INFORMATION Ordering Number Lead Free Halogen Free 2SC4617L-x-AB3-R 2SC4617G-x-AB3-R 2SC4617L-x-AE3-R 2SC4617G-x-AE3-R 2SC4617L-x-AL3-R 2SC4617G-x-AL3-R 2SC4617L-x-AN3-R 2SC4617G-x-AN3-R 2SC4617L-x-AQ3-R 2SC4617G-x-AQ3-R Note: Pin assignment: B: Base C: Collector Package SOT-89 SOT-23 SOT-323 SOT-523 SOT-723 E: Emitter Pin Assignment 1 2 3 B C E B E C B E C B E C B E C Packing Tape Reel Tape Reel Tape Reel Tape Reel Tape Reel
● MARKING SOT-89 SOT-23 / SOT-323 / SOT-523 / SOT-723 Copyright © 2025 Unisonic Technologies Co., Ltd 1 of 4 QW-R206-081.I 2SC4617 NPN SILICON TRANSISTOR
●

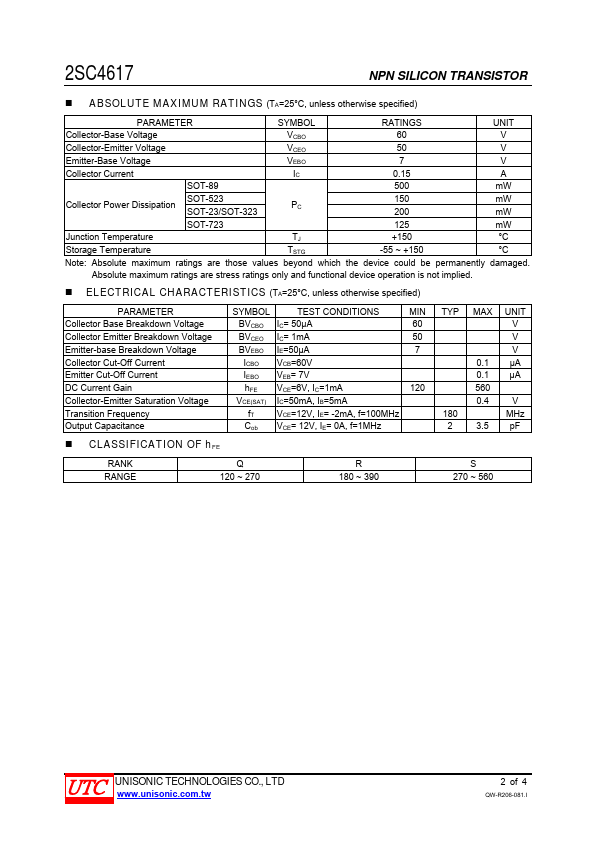

ABSOLUTE MAXIMUM RATINGS
(TA=25°C, unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Collector-Base Voltage VCBO 60 V Collector-Emitter Voltage VCEO 50 V Emitter-Base Voltage VEBO 7 V Collector Current IC 0.15 A SOT-89 500 mW Collector Power Dissipation SOT-523 SOT-23/SOT-323 PC 150 mW 200 mW SOT-723 125 mW Junction Temperature...
