2SD1899 - NPN Epitaxial Planar Silicon Transistors

Key Features

  • z High hFE hFE=100 to 400. z Low VCE(sat0 VCE(sat)≤0.3V. Pb Lead-free Production specification 2SD1899.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD1899 NPN Silicon Transistor NEC
2SD1899 NPN Transistor Weitron
2SD1899 Silicon NPN Power Transistor Inchange Semiconductor
2SD1899 NPN Transistor JCET
2SD1899 Silicon NPN transistor BLUE ROCKET ELECTRONICS

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SD1898 Power Transistor
2SD1802 NPN Epitaxial Planar Silicon Transistors
2SD1803 NPN Epitaxial Planar Silicon Transistors
2SD1815 NPN Epitaxial Planar Silicon Transistors
2SD1819A Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

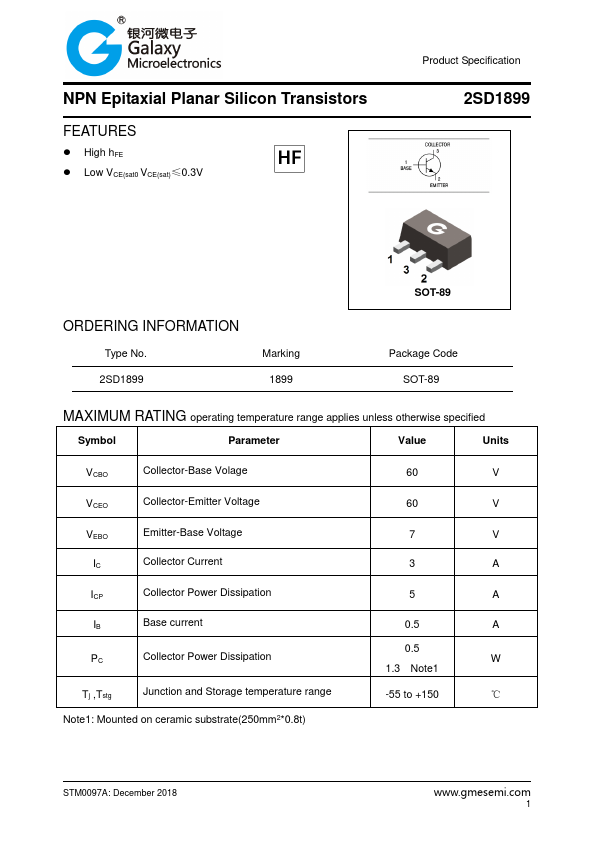

NPN Epitaxial Planar Silicon Transistors FEATURES z High hFE hFE=100 to 400. z Low VCE(sat0 VCE(sat)≤0.3V. Pb Lead-free Production specification 2SD1899 ORDERING INFORMATION Type No. Marking 2SD1899 1899 SOT-89 Package Code SOT-89 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter Value Units VCBO VCEO VEBO IC ICP IB PC Collector-Base Volage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Base current Collector Power Dissipation Tj ,Tstg Junction and Storage temperature range Note1:Mounted on ceramic substrate(250mm2*0.8t) 60 60 7 3 5 0.5 0.5 1.3 Note1 -55 to +150 V V V A A A W ℃ E127 Rev.A www.gmicroelec.
