2SD965 - Transistor

Key Features

  • z Collector current up to 5A z Collector-Emitter voltage up to 20V Pb Lead-free 2SD965.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD965 Silicon NPN Transistor Panasonic Semiconductor
2SD965 Transistor UTC
2SD965 Silicon NPN Transistor Panasonic
2SD965 Silicon NPN Transistor Guangdong Kexin Industrial
2SD965 NPN Transistor Dc Components

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SD965A Transistor
2SD999 NPN Silicon Transistor
2SD1005 NPN SILICON EPITAXIAL TRANSISTOR
2SD1088 High Voltage Darlington Power Transistors
2SD1119 Silicon NPN Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

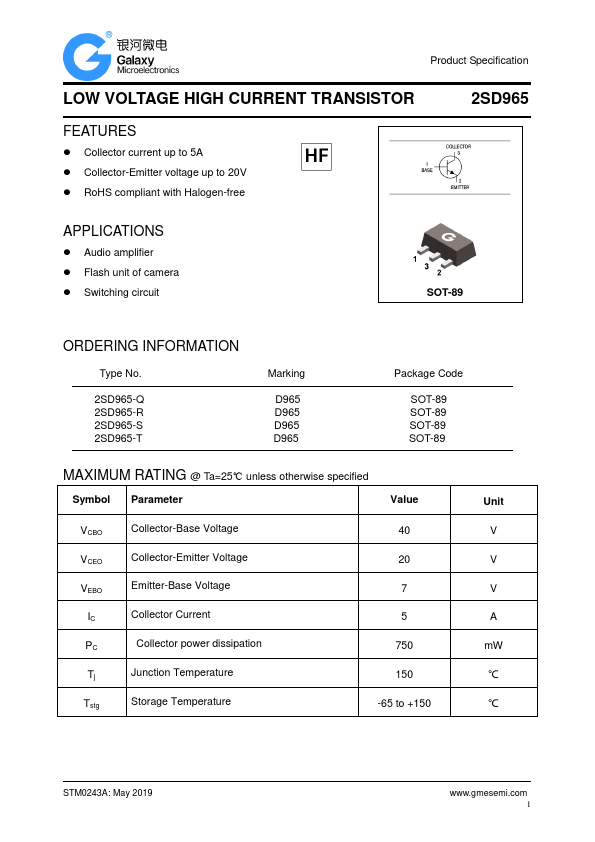

Production specification LOW VOLTAGE HIGH CURRENT TRANSISTOR FEATURES z Collector current up to 5A z Collector-Emitter voltage up to 20V Pb Lead-free 2SD965 APPLICATIONS z Audio amplifier z Flash unit of camera z Switching circuit SOT-89 ORDERING INFORMATION Type No. Marking 2SD965 D965 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Unit VCBO VCEO VEBO IC PC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector power dissipation 40 V 20 V 7V 5A 750 mW Tj Junction Temperature 150 ℃ Tstg Storage Temperature -65 to +150 ℃ E032 Rev.B www.gmicroelec.
