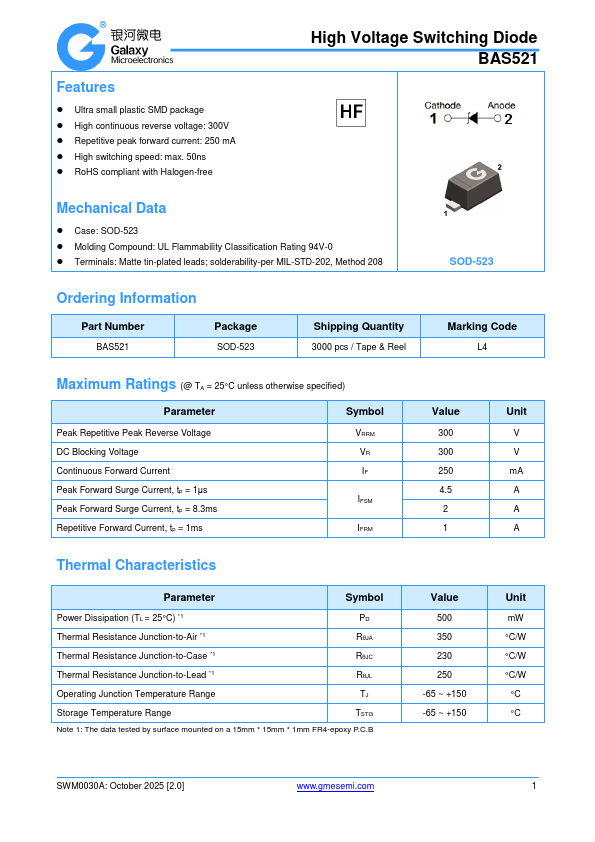

BAS521
BAS521 is High Voltage Switching Diode manufactured by Galaxy Microelectronics.
Features
- Ultra small plastic SMD package
- High continuous reverse voltage: 300V
- Repetitive peak forward current: 250 m A
- High switching speed: max. 50ns
- Ro HS pliant with Halogen-free
High Voltage Switching Diode BAS521
Mechanical Data
- Case: SOD-523
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208

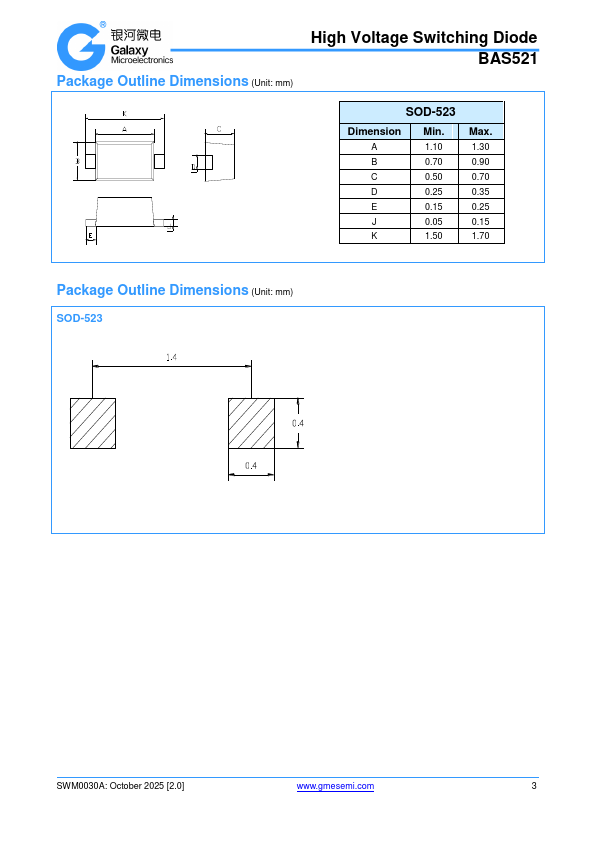

SOD-523
Ordering Information
Part Number
Package
SOD-523
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
L4
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Peak Repetitive Peak Reverse Voltage DC Blocking Voltage Continuous Forward Current Peak Forward Surge Current, tp = 1μs Peak Forward Surge Current, tp = 8.3ms Repetitive Forward Current, tp = 1ms
Symbol
VRRM VR IF
IFSM
IFRM
Value
300 300 250 4.5
2 1
Unit
V V m A A A A
Thermal Characteristics
Parameter
Symbol
Power Dissipation (TL = 25°C)
- 1
Thermal Resistance Junction-to-Air
-...
