BCV61B
BCV61B is NPN General-purpose Double Transistor manufactured by Galaxy Microelectronics.
- Part of the BCV61 comparator family.
- Part of the BCV61 comparator family.

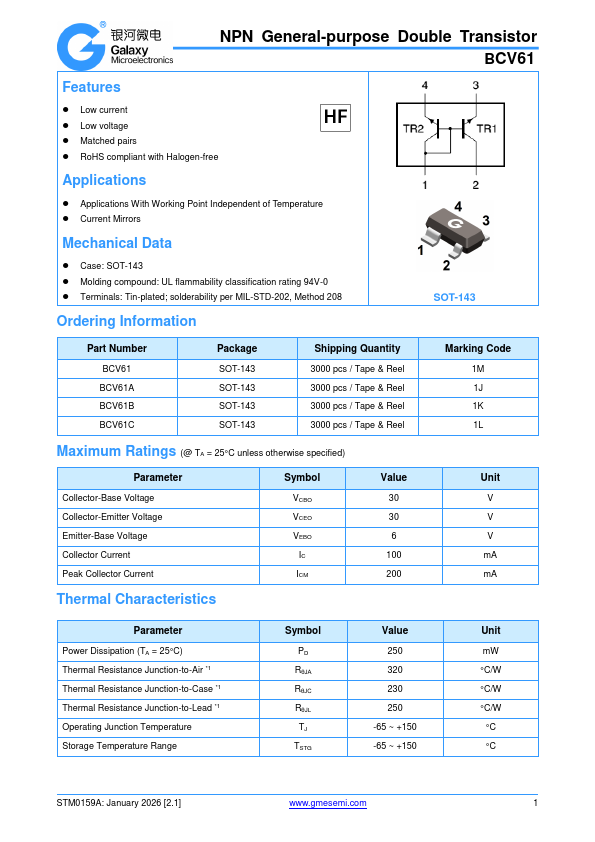

NPN General-purpose Double Transistor BCV61
Features
- Low current
- Low voltage
- Matched pairs
- RoHS pliant with Halogen-free
Applications
- Applications With Working Point Independent of Temperature
- Current Mirrors
Mechanical Data
- Case: SOT-143
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
Ordering Information
SOT-143
Part Number BCV61 BCV61A BCV61B BCV61C
Package SOT-143 SOT-143 SOT-143 SOT-143
Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code 1M 1J 1K 1L
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Param...
