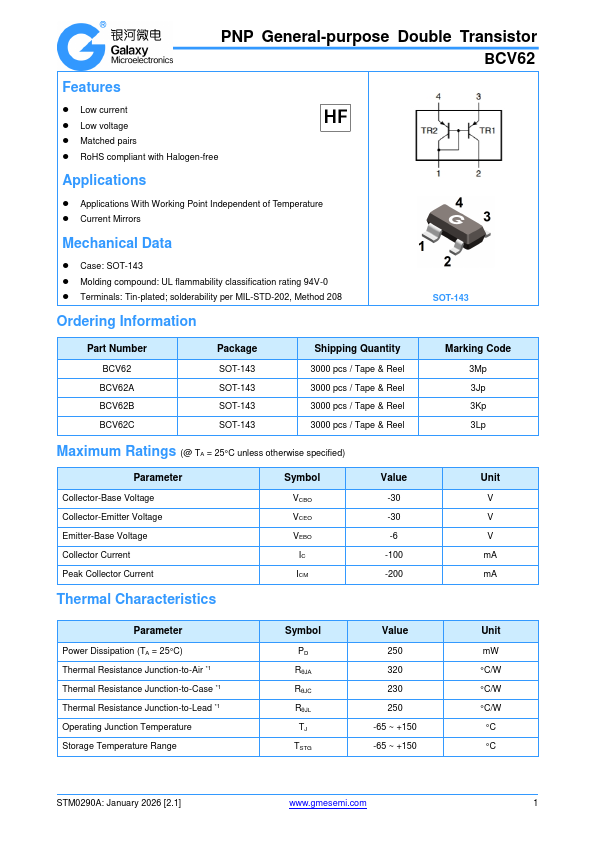

Galaxy Century Microelectronics BCV62C
PNP General-purpose Double Transistor
| Part No. | BCV62C |
|---|---|
| Datasheet | BCV62C Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | PNP General-purpose Double Transistor |
| Buy | Stock & Price |
FEATURES
● Low current● Low voltage
● Matched pairs
● RoHS compliant with Halogen-free
APPLICATIONS
●APPLICATIONS
With Working Point Independent of Temperature● Current Mirrors
MECHANICAL DATA
● Case: SOT-143● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 Ordering Information SOT-143 Part Number BCV62 BCV62A BCV62B BCV62C Package SOT-143 SOT-143 SOT-143 SOT-143 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code 3Mp 3Jp 3Kp 3Lp
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Peak Collector Current Thermal Characteristics Symbol VCBO VCEO VEBO IC ICM Value -30 -30 -6 -100 -200 Unit V V V mA mA Parameter Power Dissipation (TA = 25°C) Thermal Resistance Junction-to-Air *1 Thermal Resistance Junction-to-Case *1 Thermal Resistance...
