Semiware BCV62C
Dual PNP Small Signal Transistor
| Part No. | BCV62C |
|---|---|
| Datasheet | BCV62C Download |
| Manufacturer |  Semiware |
| Description | Dual PNP Small Signal Transistor |
| Buy | Stock & Price |

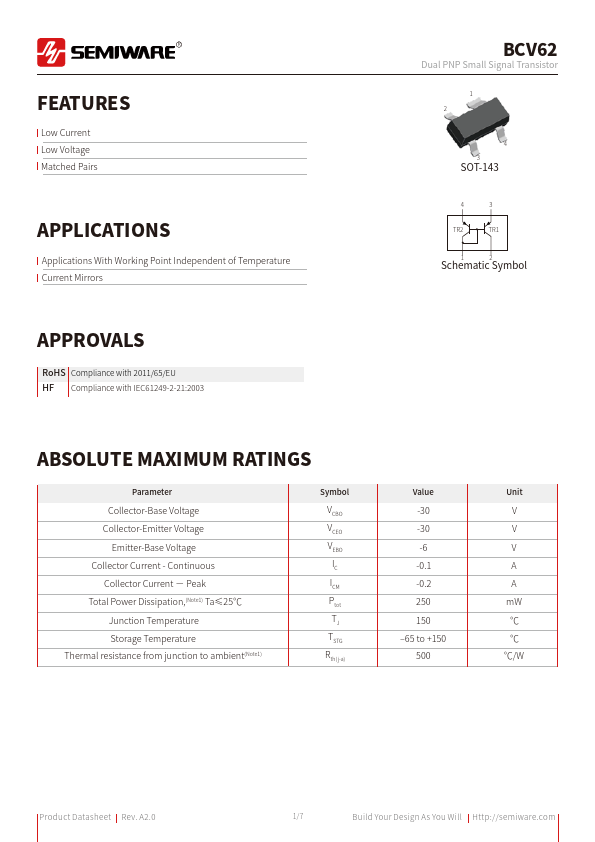

FEATURES
Low Current Low Voltage Matched PairsAPPLICATIONS
APPLICATIONS
With Working Point Independent of Temperature Current Mirrors APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 BCV62 Dual PNP Small Signal Transistor 1 2 4 3 SOT-143 4 3 TR2 TR1 1 2 Schematic SymbolABSOLUTE MAXIMUM RATINGS
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current - Continuous Collector Current － Peak Total Power Dissipation,(Note1) Ta≤25℃ Junction Temperature Storage Temperature Thermal resistance from junction to ambient(Note1) Symbol VCBO VCEO VEBO IC ICM Ptot TJ TSTG Rth( j-a) Value -30 -30 -6 -0.1 -0.2 250 150 ‒65 to +150 500 Unit V V V A A mW ℃ ℃ ℃/W Product Datasheet Rev. A2.0 1/7 Build Your Design As You Will R BCV62 Dual PNP Small Signal TransistorELECTRICAL CHARACTERISTICS
(TA=25°C ) Parameter Symbol Test Conditions Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Col...
