Galaxy Century Microelectronics BCW60C
NPN General Purpose Amplifier
| Part No. | BCW60C |
|---|---|
| Datasheet | BCW60C Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN General Purpose Amplifier |
| Buy | Stock & Price |

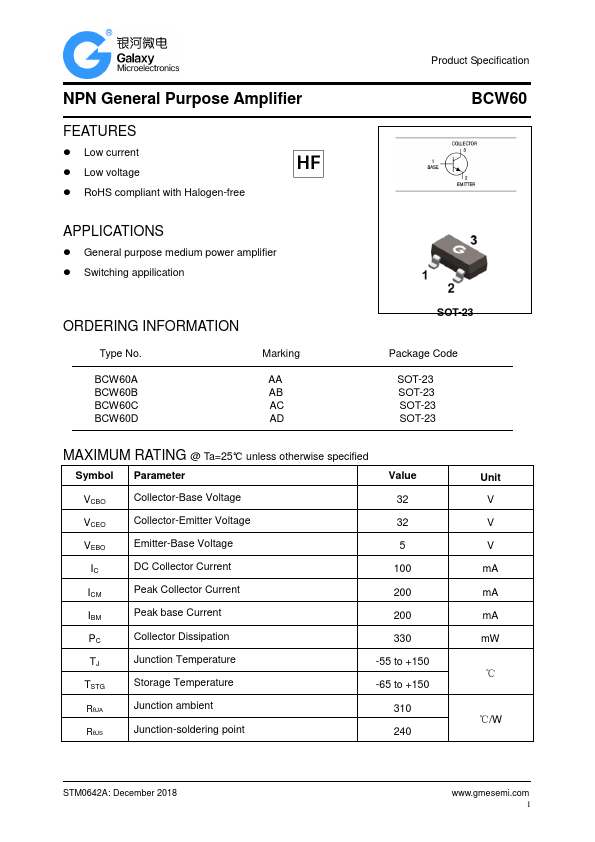

FEATURES
● Low current● Low voltage
● RoHS compliant with Halogen-free Product Specification BCW60
APPLICATIONS
● General purpose medium power amplifier● Switching appilication ORDERING INFORMATION Type No. BCW60A BCW60B BCW60C BCW60D Marking AA AB AC AD SOT-23 Package Code SOT-23 SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 32 VCEO Collector-Emitter Voltage 32 VEBO Emitter-Base Voltage 5 IC DC Collector Current 100 ICM Peak Collector Current 200 IBM Peak base Current 200 PC TJ TSTG Collector Dissipation Junction Temperature Storage Temperature 330 -55 to +150 -65 to +150 RθJA Junction ambient 310 RθJS Junction-soldering point 240 Unit V V V mA mA mA mW ℃ ℃/W STM0642A: December 2018 1 Product Specification NPN General Purpose Amplifier BCW60

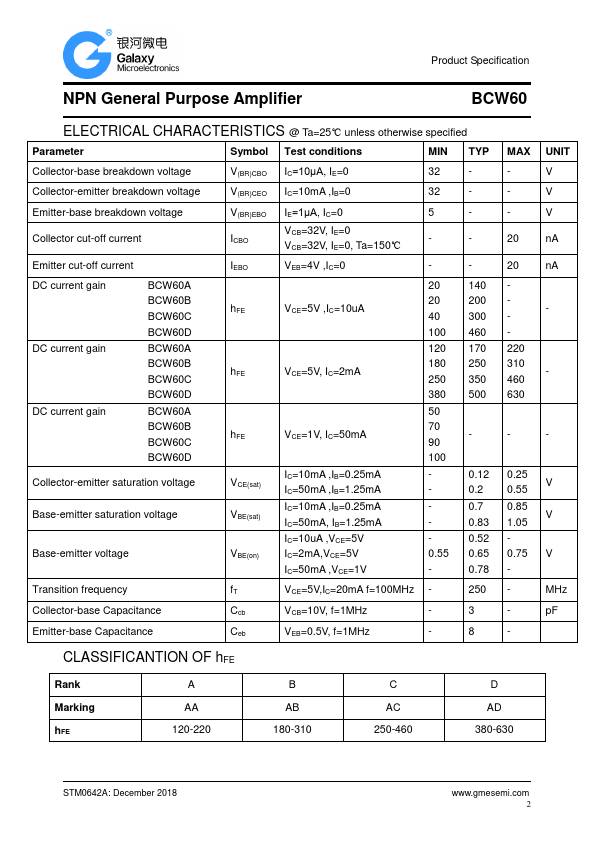

ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified Parameter Symbol Test conditions MIN TYP Collector-base breakdown voltage V(BR)CBO IC=10μA, IE=0 32 - Col...
