BCX19 - Transistor

Key Features

  • High current(500mA).
  • Low voltage(45V). Pb Lead-free BCX19.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCX19 NPN general purpose transistor NXP
BCX19 NPN Medium Power Transistor Fairchild Semiconductor
BCX19 Transistor Motorola
BCX19 SMALL SIGNAL NPN TRANSISTOR STMicroelectronics
BCX19 NPN Transistor ROHM

Other Datasheets by Galaxy Microelectronics

Part Number Description
BCX17 PNP Transistor
BCX18 PNP Transistor
BCX51 PNP Medium power transistors
BCX52 PNP Medium power transistors
BCX53 PNP Medium power transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

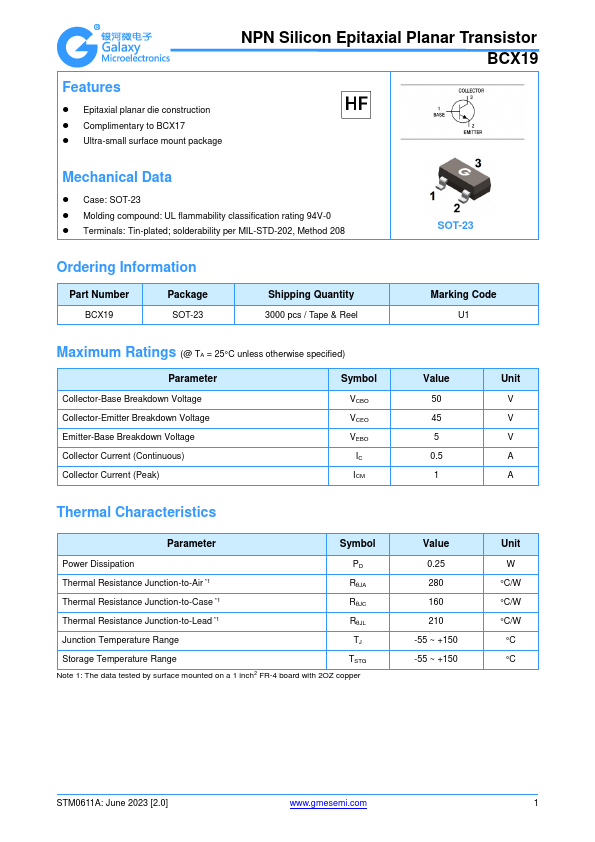

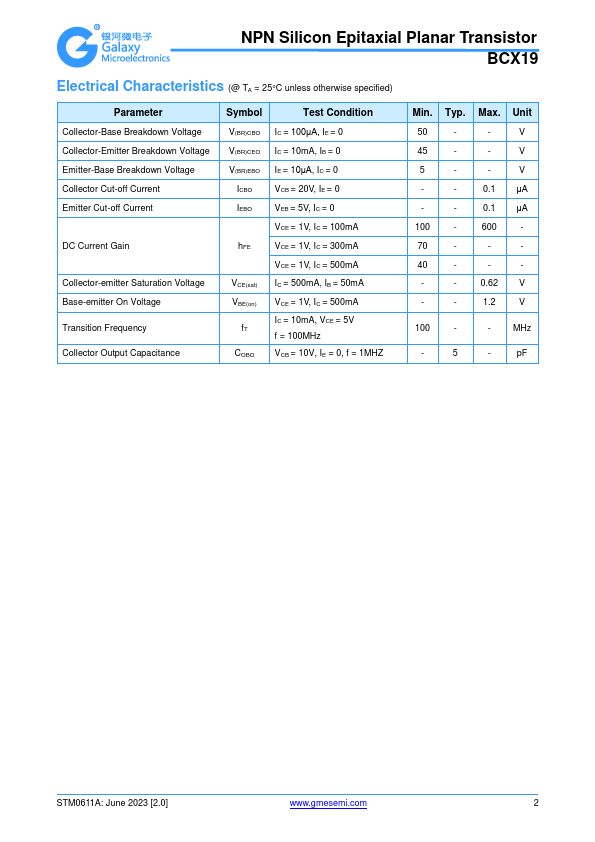

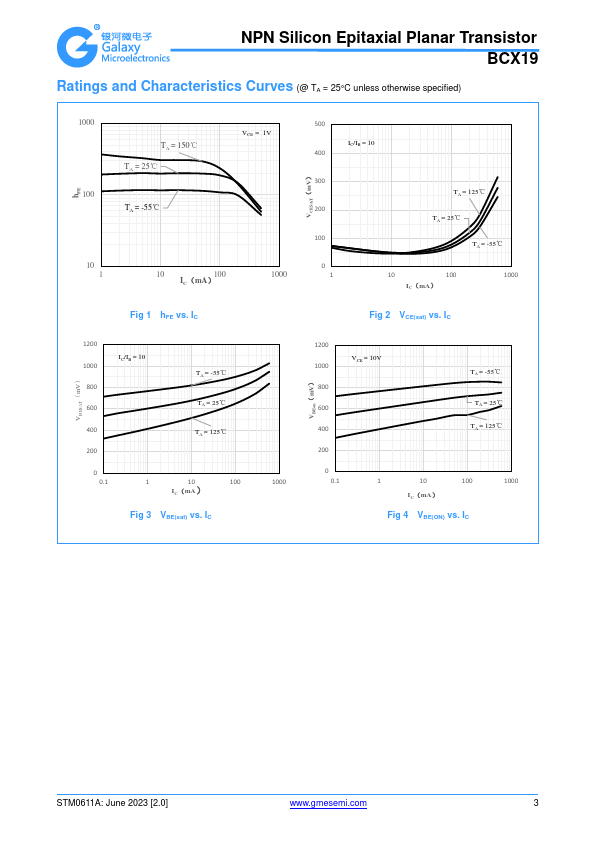

Production specification Silicon Epitaxial Planar Transistor FEATURES  High current(500mA).  Low voltage(45V). Pb Lead-free BCX19 APPLICATIONS  General purpose amplifiers.  Saturated switching and driver applications.  Complement:BCX17. ORDERING INFORMATION Type No. Marking BCX19 U1 SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 50 VCEO Collector-Emitter Voltage 45 VEBO Emitter-Base Voltage 5 IC Collector Current -Continuous 500 ICM Collector Current -Peak 1 Ptot Total Power Dissipation 250 RθJA Thermal Resistance,Junction voltage 417 Tj,Tstg Junction and Storage Temperature -65 to +150 Units V V V mA A mW ℃/W ℃ C150 Rev.B www.gmesemi.
