BCX71H

Manufacturer: Galaxy Microelectronics

BCX71H datasheet by Galaxy Microelectronics.

This datasheet includes multiple variants, all published together in a single manufacturer document.

BCX71H datasheet preview

BCX71H Datasheet Details

Part number	BCX71H
Datasheet	BCX71H BCX71 Datasheet (PDF)
File Size	302.27 KB
Manufacturer	Galaxy Microelectronics
Description	PNP Silicon Epitaxial Planar Transistor

BCX71H Overview

PNP Silicon Epitaxial Planar Transistor BCX71.

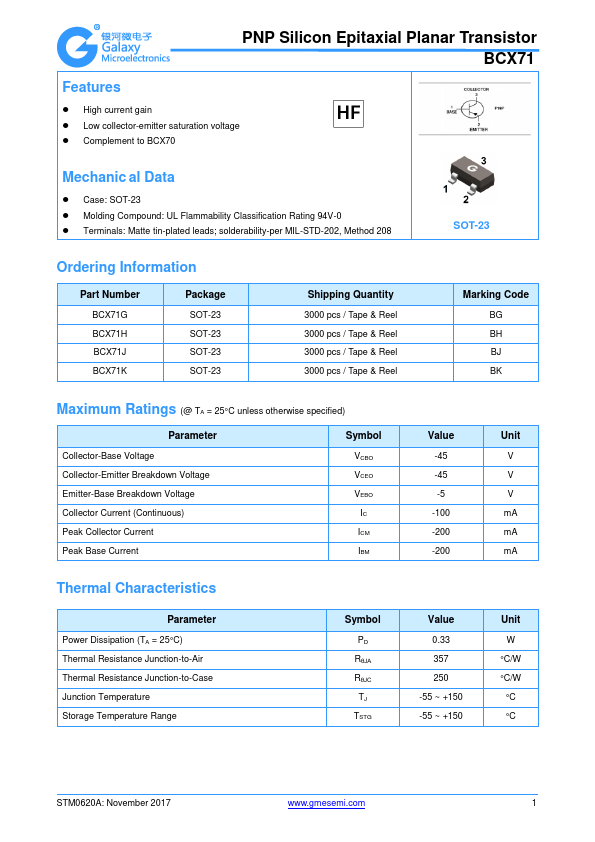

BCX71H Key Features

High current gain
Low collector-emitter saturation voltage
plement to BCX70
Case: SOT-23
Molding pound: UL Flammability Classification Rating 94V-0
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208

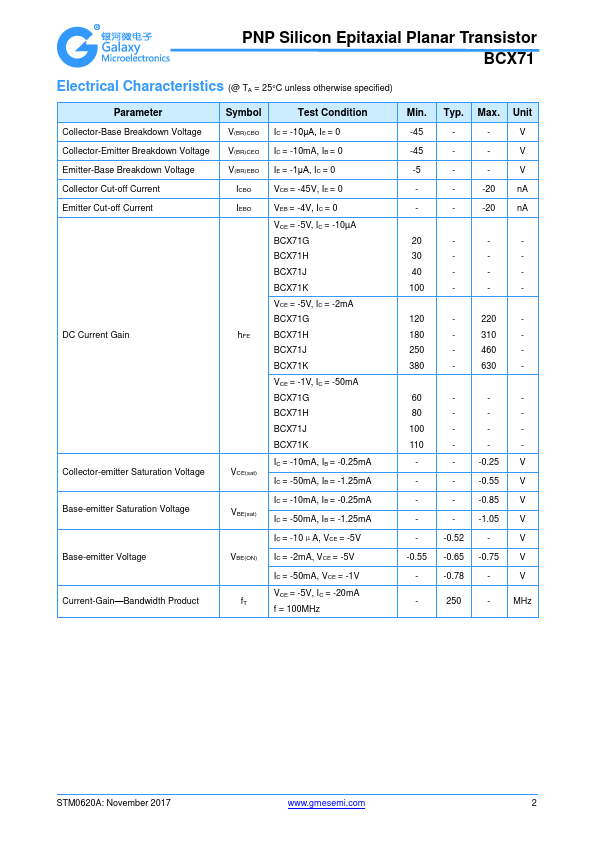

Typ. Max. Unit
0.25 V
0.55 V
0.85 V
