BCX71J

Manufacturer: Galaxy Microelectronics

BCX71J datasheet by Galaxy Microelectronics.

This datasheet includes multiple variants, all published together in a single manufacturer document.

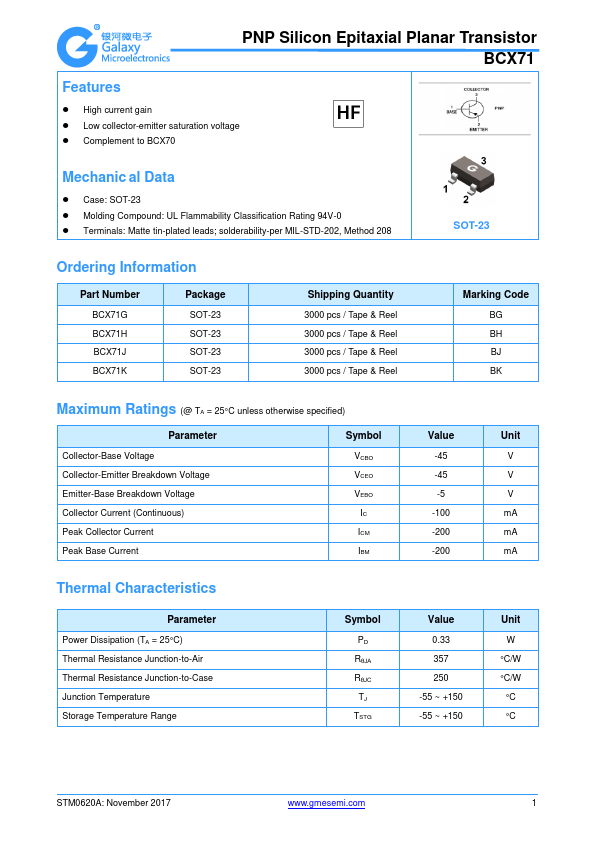

BCX71J datasheet preview

BCX71J Datasheet Details

Part number	BCX71J
Datasheet	BCX71J BCX71 Datasheet (PDF)
File Size	302.27 KB
Manufacturer	Galaxy Microelectronics
Description	PNP Silicon Epitaxial Planar Transistor

BCX71J Overview

PNP Silicon Epitaxial Planar Transistor BCX71.

BCX71J Key Features

High current gain
Low collector-emitter saturation voltage
plement to BCX70
Case: SOT-23
Molding pound: UL Flammability Classification Rating 94V-0
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
Typ. Max. Unit
0.25 V
0.55 V
0.85 V
