BCX71

Manufacturer: Galaxy Microelectronics

BCX71 datasheet by Galaxy Microelectronics.

BCX71 datasheet preview

BCX71 Datasheet Details

Part number	BCX71
Datasheet	BCX71-GME.pdf
File Size	302.27 KB
Manufacturer	Galaxy Microelectronics
Description	PNP Silicon Epitaxial Planar Transistor

BCX71 Overview

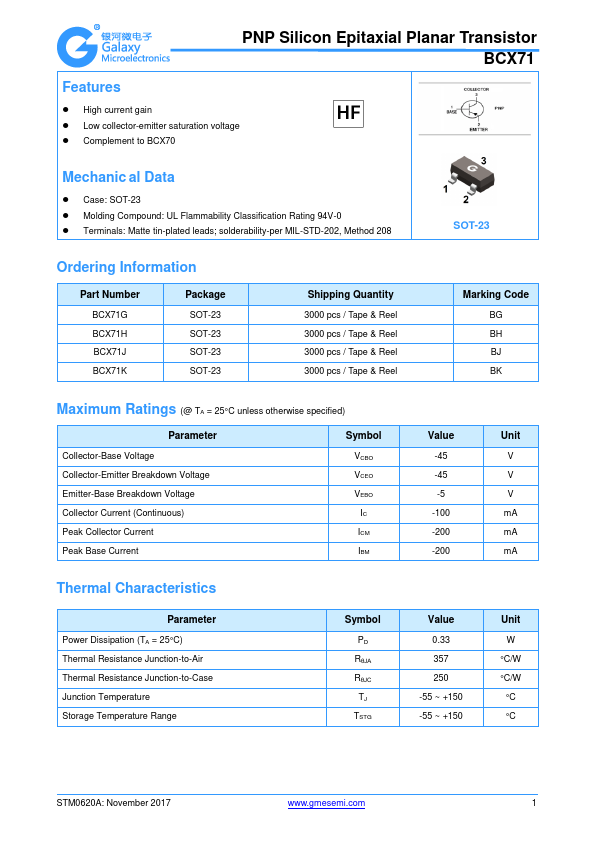

PNP Silicon Epitaxial Planar Transistor BCX71.

BCX71 Key Features

High current gain
Low collector-emitter saturation voltage
plement to BCX70
Case: SOT-23
Molding pound: UL Flammability Classification Rating 94V-0
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
Typ. Max. Unit
0.25 V
0.55 V
0.85 V
