BCX71JLT1G - General Purpose Transistors PNP Silicon

Key Features

  • Moisture Sensitivity Level: 1.
  • These Devices are Pb.
  • Free, Halogen Free/BFR Free and are RoHS Compliant http://onsemi. com.

📥 Download Datasheet

Datasheet Details

Part number BCX71JLT1G
Manufacturer onsemi
File Size 287.45 KB
Description General Purpose Transistors PNP Silicon
Datasheet download datasheet BCX71JLT1G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCX71J PNP EPITAXIAL SILICON TRANSISTOR Fairchild Semiconductor
BCX71J PNP Transistor NXP
BCX71J PNP Silicon AF Transistors Infineon
BCX71J SILICON PNP TRANSISTORS Central Semiconductor
BCX71J SILICON PLANAR EPITAXIAL TRANSISTORS CDIL

Other Datasheets by onsemi

Part Number Description
BCX70GLT1 General Purpose Transistors
BCX17LT1G Transistor
BCX18LT1G Transistor
BCX19LT1G Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

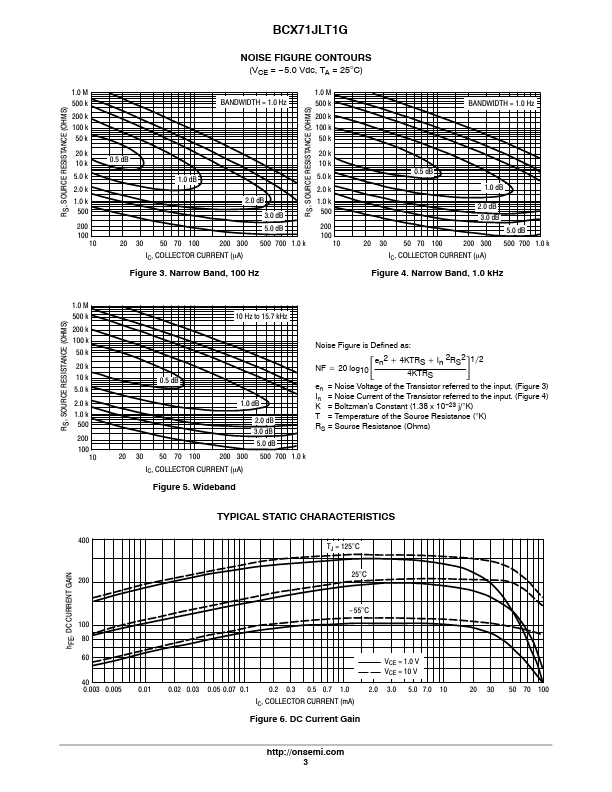

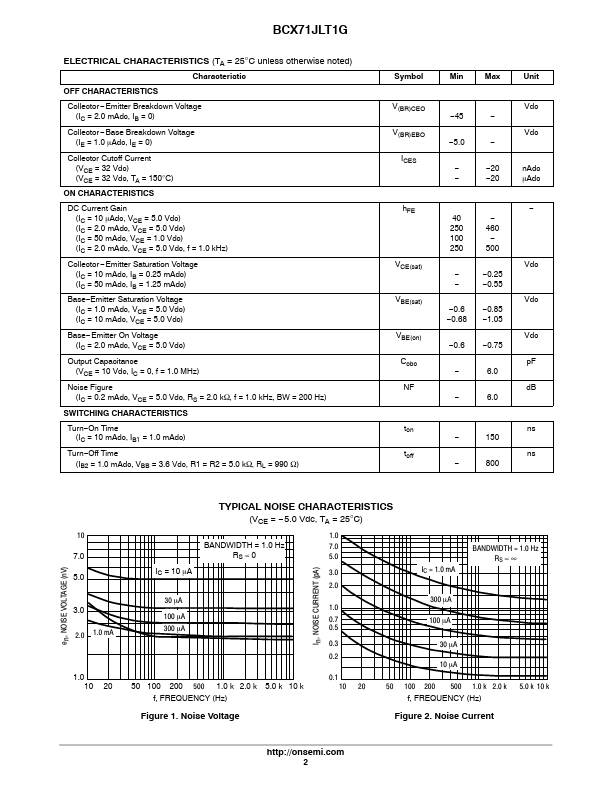

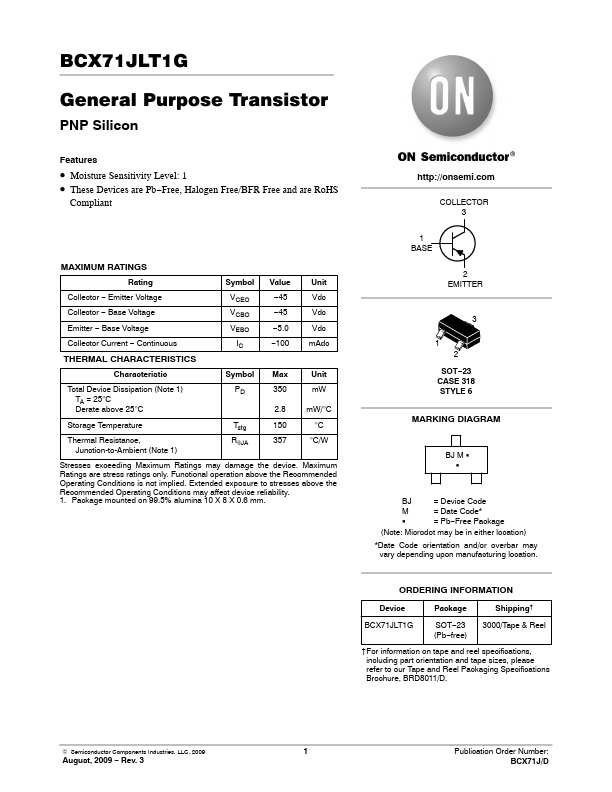

www.DataSheet4U.com BCX71JLT1G General Purpose Transistor PNP Silicon Features • Moisture Sensitivity Level: 1 • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant http://onsemi.com COLLECTOR 3 1 BASE MAXIMUM RATINGS Rating Collector − Emitter Voltage Collector − Base Voltage Emitter − Base Voltage Collector Current − Continuous Symbol VCEO VCBO VEBO IC Value −45 −45 −5.0 −100 Unit Vdc Vdc Vdc mAdc 1 2 EMITTER 3 THERMAL CHARACTERISTICS Characteristic Total Device Dissipation (Note 1) TA = 25°C Derate above 25°C Storage Temperature Thermal Resistance, Junction-to-Ambient (Note 1) Symbol PD Max 350 2.8 Tstg RqJA 150 357 Unit mW mW/°C °C °C/W 2 SOT−23 CASE 318 STYLE 6 MARKING DIAGRAM Stresses exceeding Maximum Ratings may damage the device.
