BZG05C3V3 Datasheet Zener Diodes

Manufacturer: Galaxy Microelectronics

📥 Download Datasheet

Overview

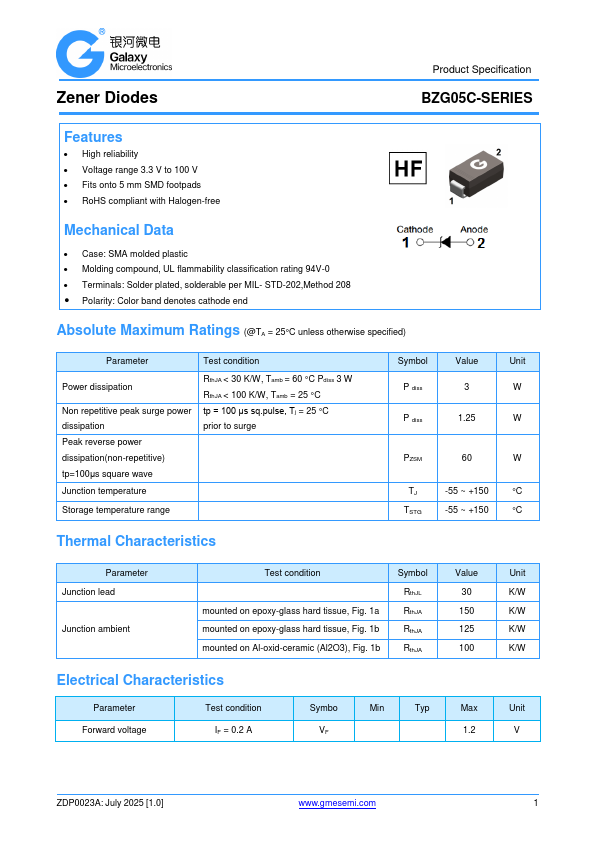

Zener Diodes Product Specification BZG05C-SERIES.

Key Features

  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Fits onto 5 mm SMD footpads.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: SMA molded plastic.
  • Molding compound, UL flammability classification rating 94V-0.
  • Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
  • Polarity: Color band denotes cathode end Absolute Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Test condition Power dissipation Non repetitive peak surge.
