BZG05C3V9 - Zener Diodes

Galaxy Microelectronics

Download the BZG05C3V9 datasheet PDF. This datasheet also covers the BZG05C3V3 variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

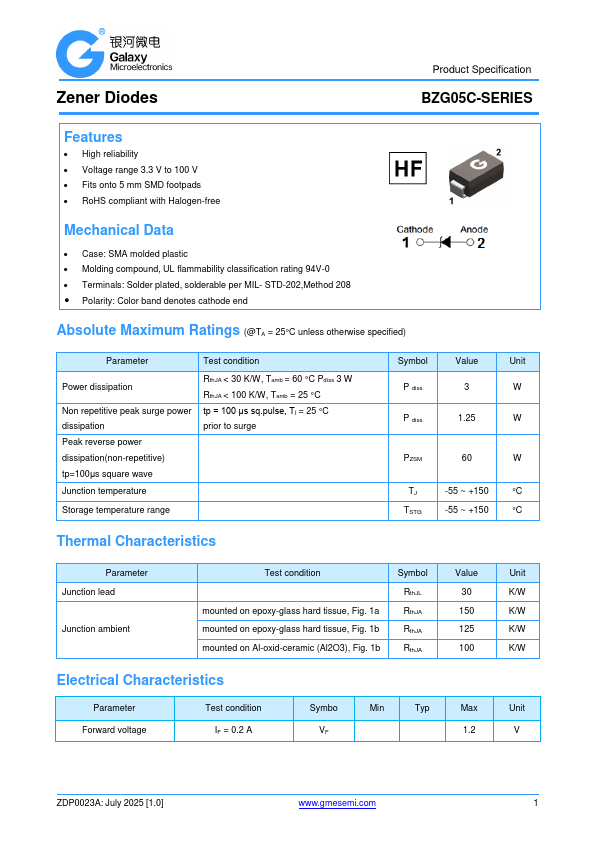

BZG05C3V9 zener diodes by Galaxy Microelectronics - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BZG05C3V3-GME.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BZG05C3V9
Manufacturer	Galaxy Microelectronics
File Size	284.01 KB
Description	Zener Diodes
Datasheet	BZG05C3V9 Datasheet

Overview

Zener Diodes Product Specification BZG05C-SERIES.

Key Features

High reliability.
Voltage range 3.3 V to 100 V.
Fits onto 5 mm SMD footpads.
RoHS compliant with Halogen-free Mechanical Data.
Case: SMA molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
Polarity: Color band denotes cathode end Absolute Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Test condition Power dissipation Non repetitive peak surge.
