DAN222 - Surface Mount Fast Switching Diode

Key Features

  • z Ultra-Small surface mount package. z Fast switching speed. z For general purpose switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DAN222 SOT-416/SC-90 PACKAGE COMMON CATHODE DUAL SWITCHING DIODE SURFACE MOUNT Motorola Inc
DAN222 Common Cathode Silicon Dual Switching Diode ON Semiconductor
DAN222 Ultra high speed switching Diodes Incorporated
DAN222 Band Switching Diode Rohm
DAN222 SWITCHING DIODE Transys

Other Datasheets by Galaxy Microelectronics

Part Number Description
DAN222M Switching diode
DAN202 Dual surface mount switching diode
DAN202U Dual surface mount switching diode
DAN217 Surface mount switching diode
DAN217U Dual series switching diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

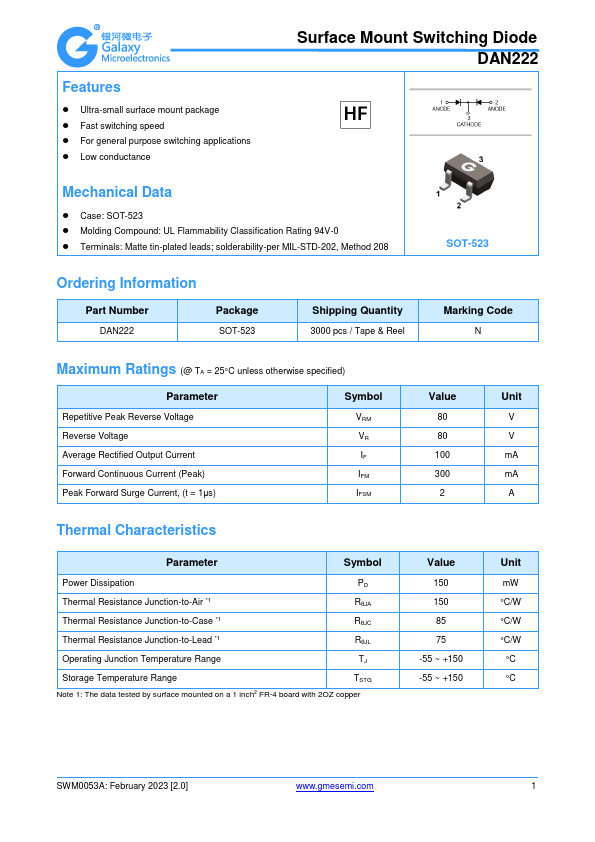

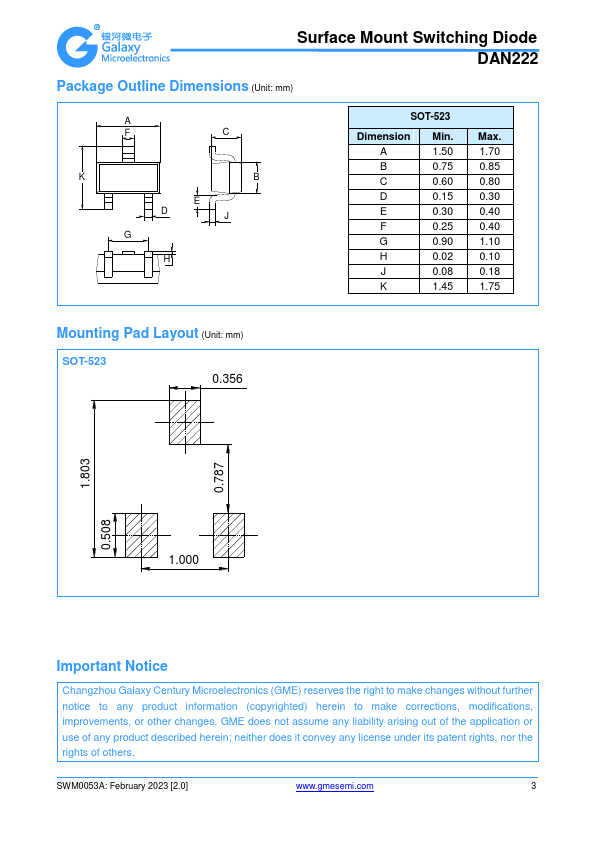

Production specification Surface Mount Fast Switching Diode FEATURES z Ultra-Small surface mount package. z Fast switching speed. z For general purpose switching applications. z Low conductance. Pb Lead-free DAN222 APPLICATIONS z General purpose switching application. ORDERING INFORMATION Type No. Marking DAN222 N SOT-523 Package Code SOT-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol VR VRM IF IFM IFSM Parameter DC reverse voltage Peak reverse voltage Forward continuous voltage Peak forward current (max.) Non-repetitive peak forward surge current @t=1.0μs Value 80 80 100 300 2.
