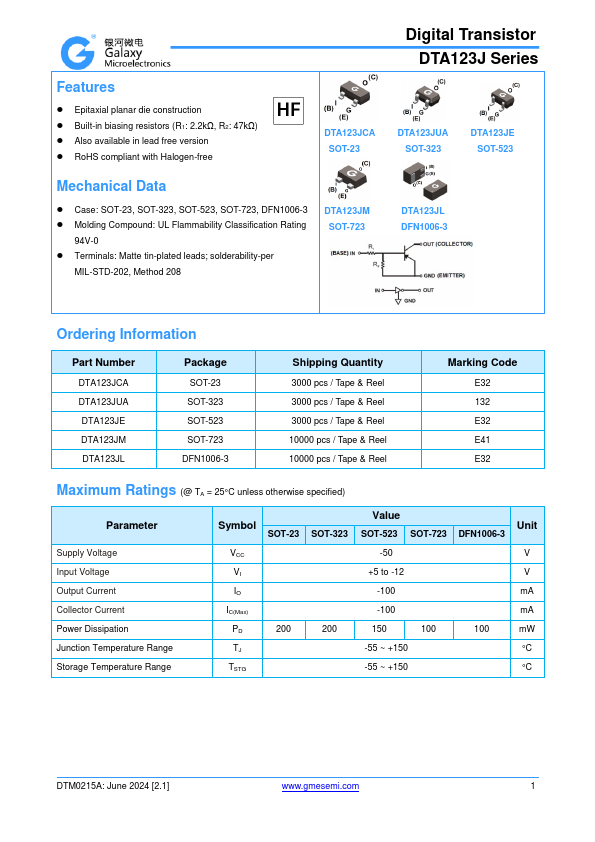

DTA123JCA
DTA123JCA is Digital Transistor manufactured by Galaxy Microelectronics.
Features
- Epitaxial planar die construction
- Built-in biasing resistors (R1: 2.2kΩ, R2: 47kΩ)
- Also available in lead free version
- RoHS pliant with Halogen-free
Digital Transistor DTA123J Series
DTA123JCA SOT-23
DTA123JUA SOT-323
DTA123JE SOT-523
Mechanical Data
- Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3
- Molding pound: UL Flammability Classification Rating
94V-0
- Terminals: Matte tin-plated leads; solderability-per
MIL-STD-202, Method 208
DTA123JM SOT-723
DTA123JL DFN1006-3
Ordering Information
Part Number
DTA123JCA DTA123JUA DTA123JE DTA123JM DTA123JL
Package
SOT-23 SOT-323 SOT-523 SOT-723 DFN1006-3
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs /...
