Galaxy Century Microelectronics KTC2026
NPN Silicon Epitaxial Planar Transistor
| Part No. | KTC2026 |
|---|---|
| Datasheet | KTC2026 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |

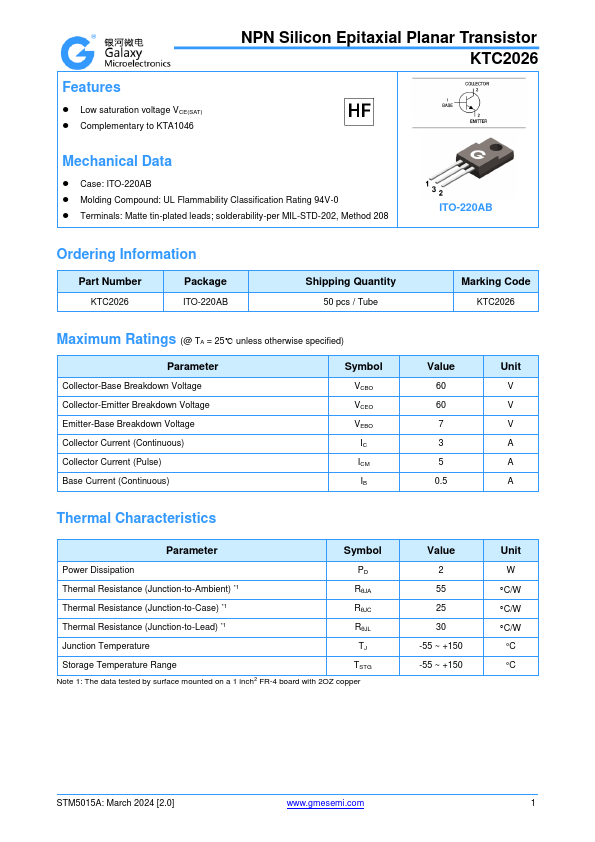

FEATURES
● Low saturation voltage VCE(SAT)● Complementary to KTA1046 NPN Silicon Epitaxial Planar Transistor KTC2026
MECHANICAL DATA
● Case: ITO-220AB● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 ITO-220AB Ordering Information Part Number KTC2026 Package ITO-220AB Shipping Quantity 50 pcs / Tube Marking Code KTC2026
MAXIMUM RATINGS
(@ TA = 25℃ unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Collector Current (Pulse) Base Current (Continuous) Symbol VCBO VCEO VEBO IC ICM IB Thermal Characteristics Parameter Symbol Power Dissipation PD Thermal Resistance (Junction-to-Ambient) *1 RθJA Thermal Resistance (Junction-to-Case) *1 RθJC Thermal Resistance (Junction-to-Lead) *1 RθJL Junction Temperature TJ Storage Temperature Range TSTG Note 1: The data tested by surface mounted o...
