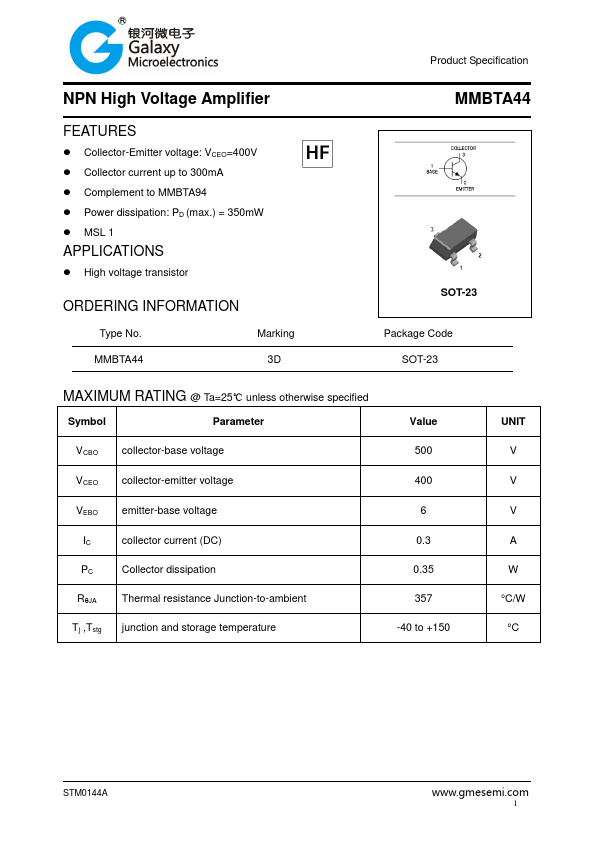

FEATURES - Collector-Emitter voltage: VCEO=400V - Collector current up to 300m A - plement to MMBTA94 - Power dissipation: PD (max.) = 350m W - MSL 1 APPLICATIONS - High voltage transistor ORDERING INFORMATION Type No. Marking 3D SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCBO collector-base voltage VCEO collector-emitter voltage VEBO emitter-base voltage IC collector current (DC) Collector dissipation RθJA Thermal resistance Junction-to-ambient Tj ,Tstg junction and storage temperature Value 500 400 6 0.3 0.35 357 -40 to +150 UNIT V V V A W °C/W °C STM0144A .gmesemi. Product Specification NPN High Voltage Amplifier ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Symbol Parameter Test conditions MIN. MAX. UNIT V(BR)CBO Collector-base breakdown voltage IC=100μA,IE=0 -...
