MMSTA42 Datasheet | Galaxy Microelectronics

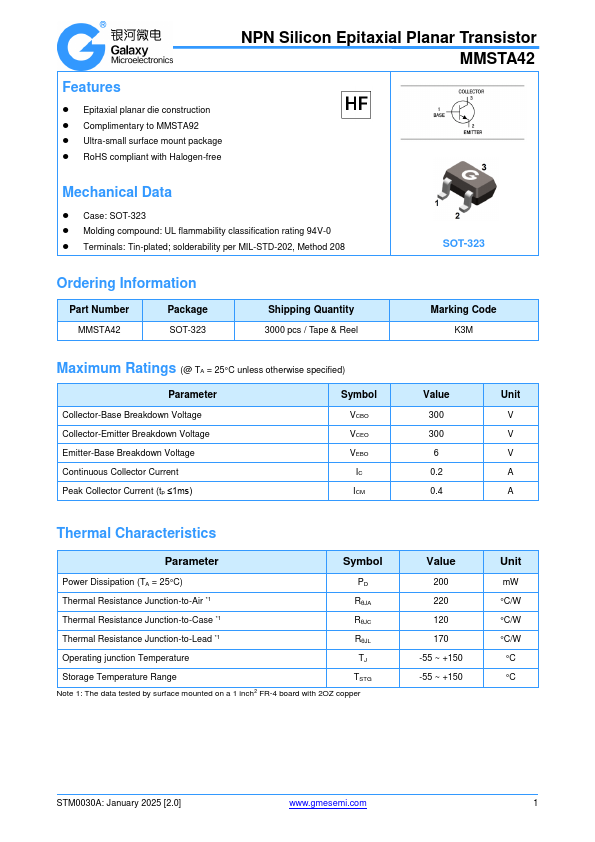

Features - Epitaxial planar die construction - plimentary to MMSTA92 - Ultra-small surface mount package - Ro HS pliant with Halogen-free Mechanical Data - Case: SOT-323 - Molding pound: UL flammability classification rating 94V-0 - Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-323 Ordering Information Part Number MMSTA42 Package SOT-323 Shipping Quantity 3000 pcs / Tape & Reel Marking Code K3M Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Continuous Collector Current Peak Collector Current (tp ≤1ms) Symbol VCBO VCEO VEBO IC ICM Value 300 300 6 0.2 0.4 Unit V V V A A Thermal Characteristics Parameter Symbol Power Dissipation (TA = 25°C) Thermal Resistance Junction-to-Air - 1 RθJA Thermal Resistance Junction-to-Case - 1 RθJC Thermal Resistance Junction-to-Lead - 1 RθJL Operating junction Temperature Storage Temperature Range TSTG Note 1: The data tested by surface mounted on a 1 inch2 FR-4 board with 2OZ...
