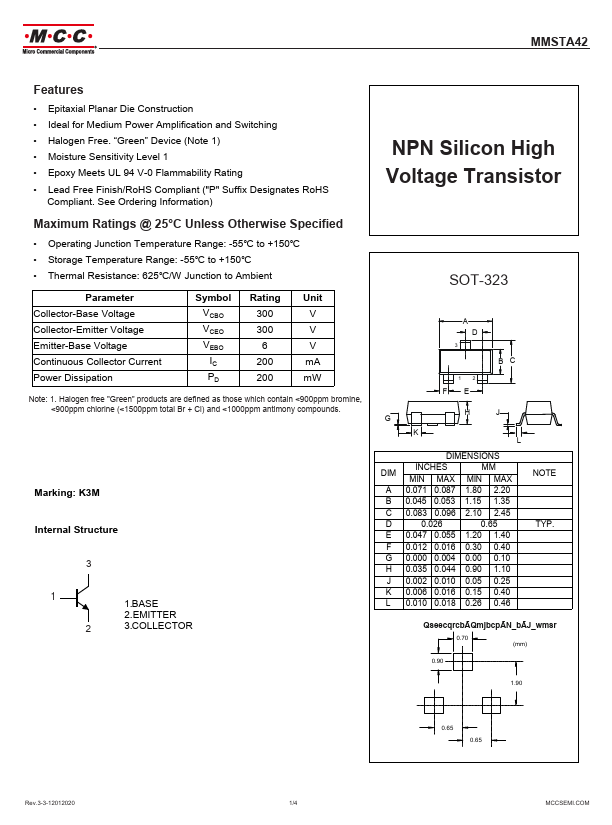

MMSTA42
MMSTA42 is NPN Silicon High Voltage Transistor manufactured by Micro Commercial Components.
Features
- Epitaxial Planar Die Construction
- Ideal for Medium Power Amplification and Switching
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C Unless Otherwise Specified
- Operating Junction Temperature Range: -55℃ to +150℃
- Storage Temperature Range: -55℃ to +150℃
- Thermal Resistance: 625℃/W Junction to Ambient
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation
Symbol VCBO VCEO VEBO IC PD
Rating 300 300 6 200 200
Unit V V V m A m W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
Marking: K3M
Internal Structure
1 2
1.BASE 2.EMITTER 3.COLLECTOR
NPN Silicon High Voltage Transistor
SOT-323
DIMENSIONS
INCHES
MIN MAX MIN MAX
A 0.071 0.087 1.80 2.20
B 0.045 0.053 1.15 1.35
C 0.083 0.096 2.10 2.45
E 0.047 0.055 1.20 1.40
F 0.012 0.016 0.30 0.40
G 0.000 0.004 0.00 0.10
H 0.035 0.044 0.90 1.10
J 0.002 0.010 0.05 0.25
K 0.006 0.016 0.15 0.40
L 0.010 0.018 0.26...
