MMSTA42 Datasheet NPN Transistor

Manufacturer: Yangjie Electronic

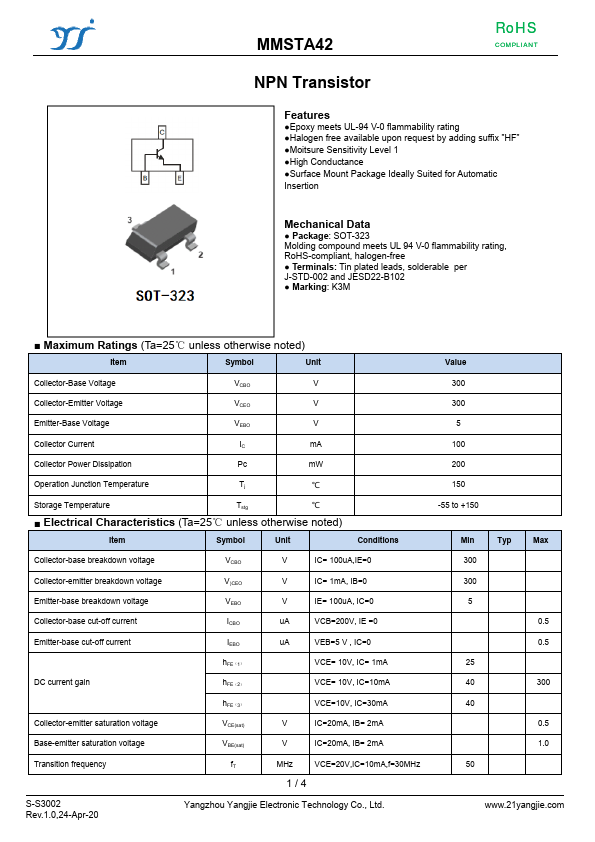

Overview: MMSTA42 RoHS COMPLIANT NPN Transistor.

Key Features

  • Epoxy meets UL-94 V-0 flammability rating.
  • Halogen free available upon request by adding suffix ”HF”.
  • Moitsure Sensitivity Level 1.
  • High Conductance.
  • Surface Mount Package Ideally Suited for Automatic Insertion Mechanical Data.

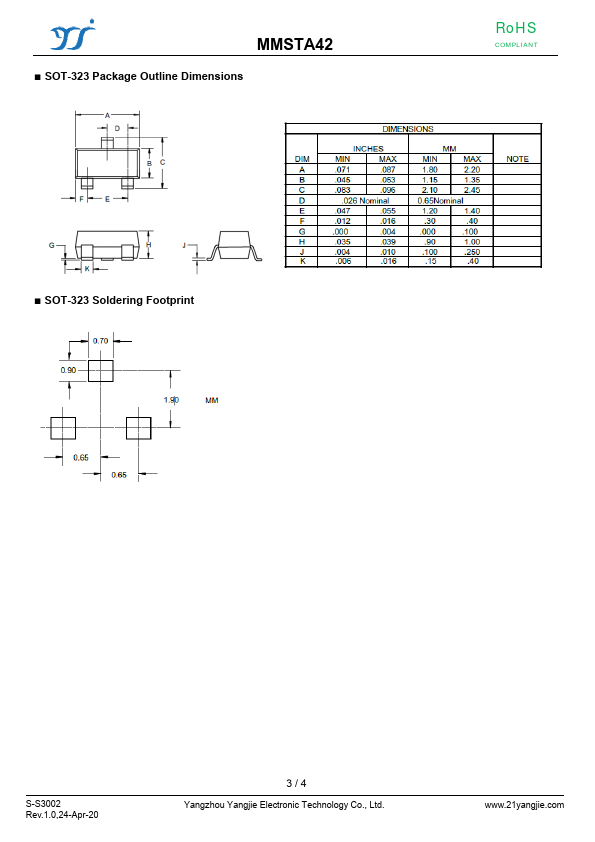

  • Package: SOT-323 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free.
  • Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102.
  • Marking: K3M.
  • Maximum Ratings (Ta=25℃ unless otherwise no.
