PXT3906 - PNP Switching Transistor

Datasheet Summary

Features

  • High current(max.600mA).
  • Low voltage(max.40V). Pb Lead-free.
  • Complement:PXT3904.

📥 Download Datasheet

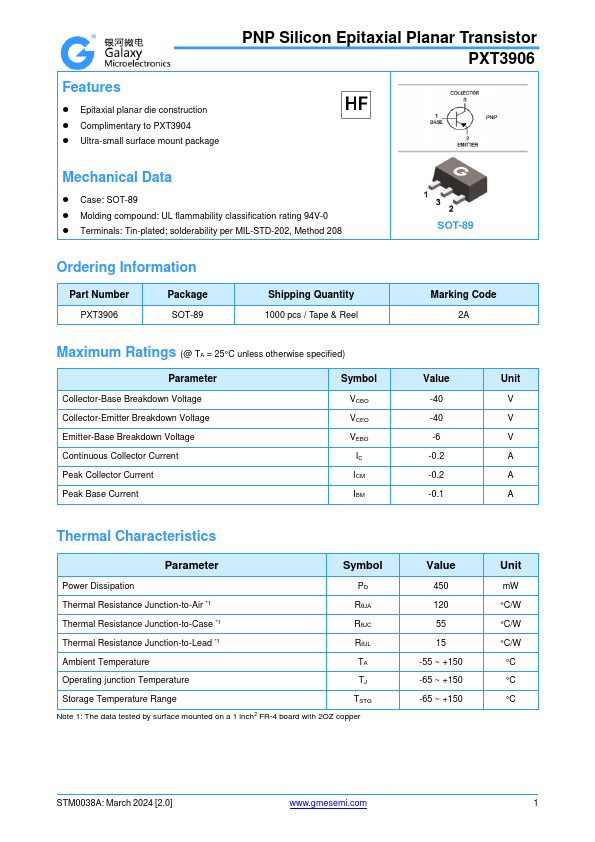

Datasheet preview – PXT3906

Datasheet Details

Part number PXT3906
Manufacturer GME
File Size 214.58 KB
Description PNP Switching Transistor
Datasheet download datasheet PXT3906 Datasheet

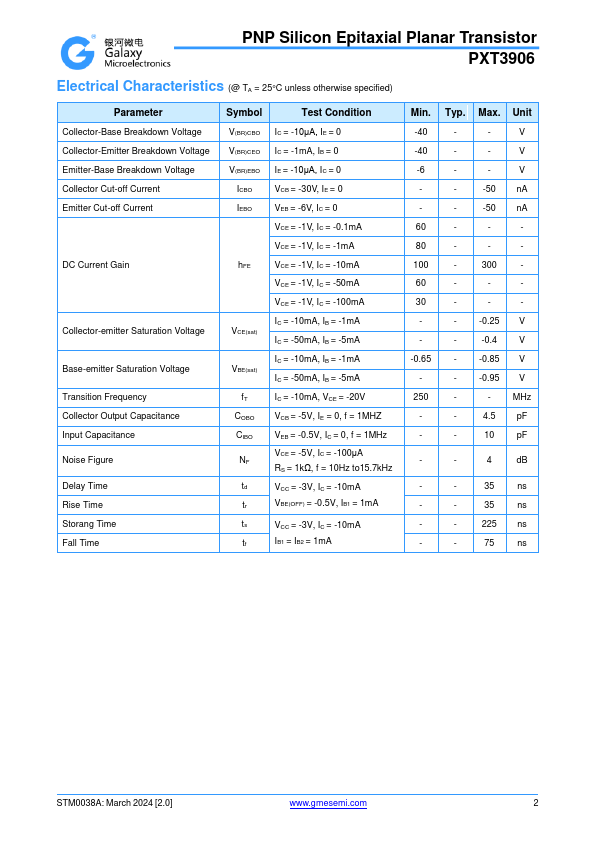

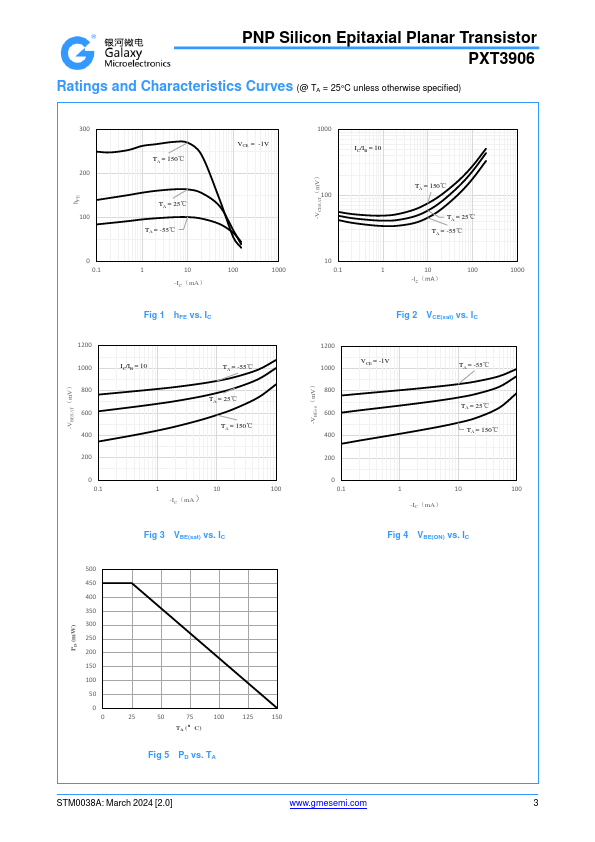

Additional preview pages of the PXT3906 datasheet.

📁 Similar Datasheet

  • PXT3906 - PNP switching transistor (NXP)
  • PXT3906 - PNP Transistor (JCET)
  • PXT3906 - PNP Transistors (Kexin)
  • PXT3906 - PNP General Purpose Amplifier (MCC)
  • PXT3904 - NPN switching transistor (NXP)
  • PXT3904 - NPN Transistors (Kexin)
  • PXT2222 - NPN switching transistor (NXP)
  • PXT2222A - NPN switching transistor (NXP)
  • PXT2222A - NPN Transistors (Kexin)
  • PXT2222A - NPN switching transistors (nexperia)
Other Datasheets by GME
  • PXT3904 - NPN Switching Transistor
  • PXT2222A - NPN Switching Transistor
  • PXT2907A - PNP General Purpose Amplifier
  • PXT8050 - PLASTIC-ENCAPSULATE TRANSISTORS
  • PXT8550 - PLASTIC-ENCAPSULATE TRANSISTORS

Full PDF Text Transcription

Click to expand full text
PNP Switching Transistor FEATURES  High current(max.600mA).  Low voltage(max.40V). Pb Lead-free  Complement:PXT3904. APPLICATIONS  High-speed saturated switching amplification. Production specification PXT3906 ORDERING INFORMATION Type No. Marking PXT3906 2A SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Unit VCBO VCEO VEBO IC ICM Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Peak Collector Current -40 -40 -6 -100 -200 V V V mA mA IBM Peak Base Current -100 mA PD Total Device Dissipation 450 mW Tj,Tstg Junction and Storage Temperature -65 to +150 ℃ E103 Rev.A www.gmesemi.
