PXT3906 Datasheet | Yangjie Electronic

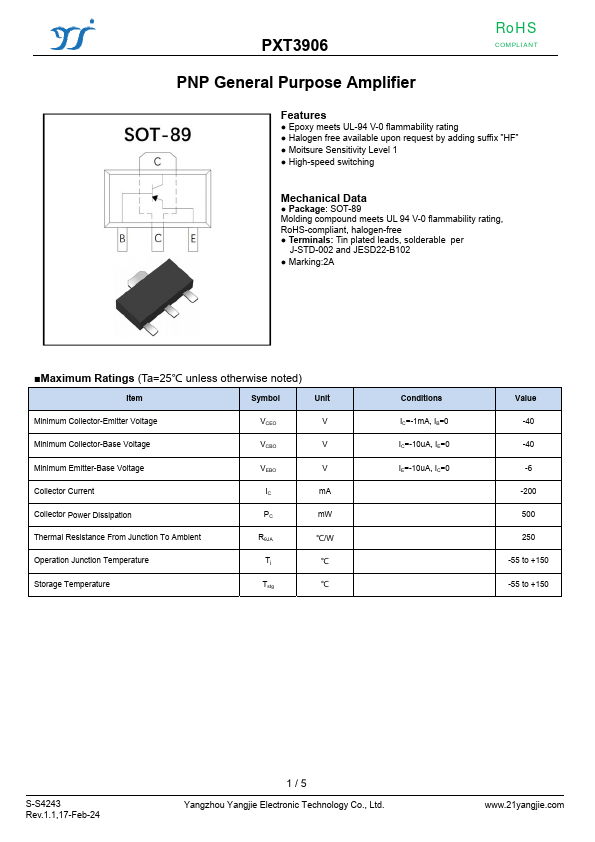

Features - Epoxy meets UL-94 V-0 flammability rating - Halogen free available upon request by adding suffix ”HF” - Moitsure Sensitivity Level 1 - High-speed switching Mechanical Data - Package: SOT-89 Molding pound meets UL 94 V-0 flammability rating, Ro HS-pliant, halogen-free - Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 - Marking:2A - Maximum Ratings (Ta=25℃ unless otherwise noted) Item Symbol Unit Minimum Collector-Emitter Voltage VCEO Minimum Collector-Base Voltage VCBO Minimum Emitter-Base Voltage VEBO Collector Current Collector Power Dissipation IC m A PC m W Thermal Resistance From Junction To Ambient RθJA ℃/W Operation Junction Temperature Tj ℃ Storage Temperature Tstg ℃ Conditions IC=-1m A, IB=0 IC=-10u A, IE=0 IE=-10u A, IC=0 Value -40 -40 -6 -200 500 250 -55 to +150 -55 to +150 S-S4243 Rev.1.1,17-Feb-24 1/5...
