PXT3904 Datasheet NPN General Purpose Amplifier

Manufacturer: Yangjie Electronic

Overview: PXT3904 RoHS COMPLIANT NPN General Purpose Amplifier.

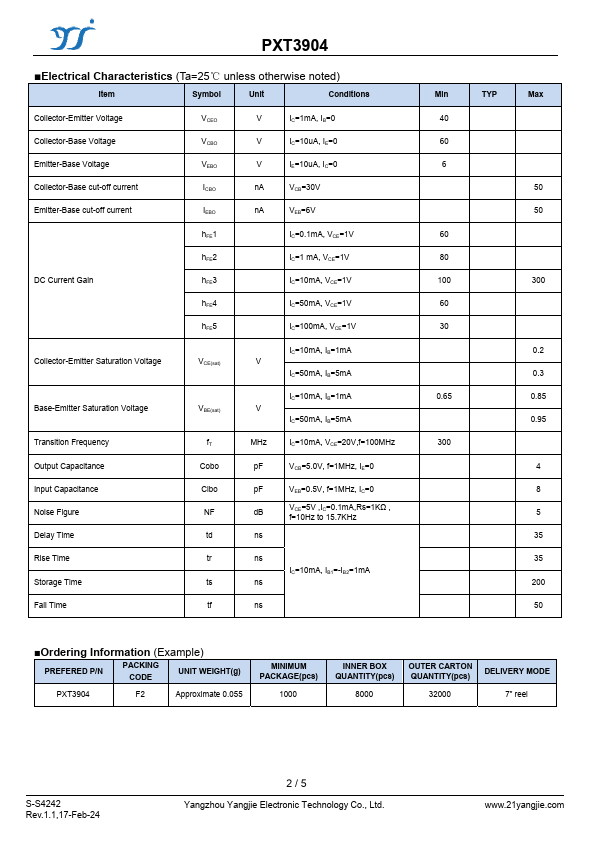

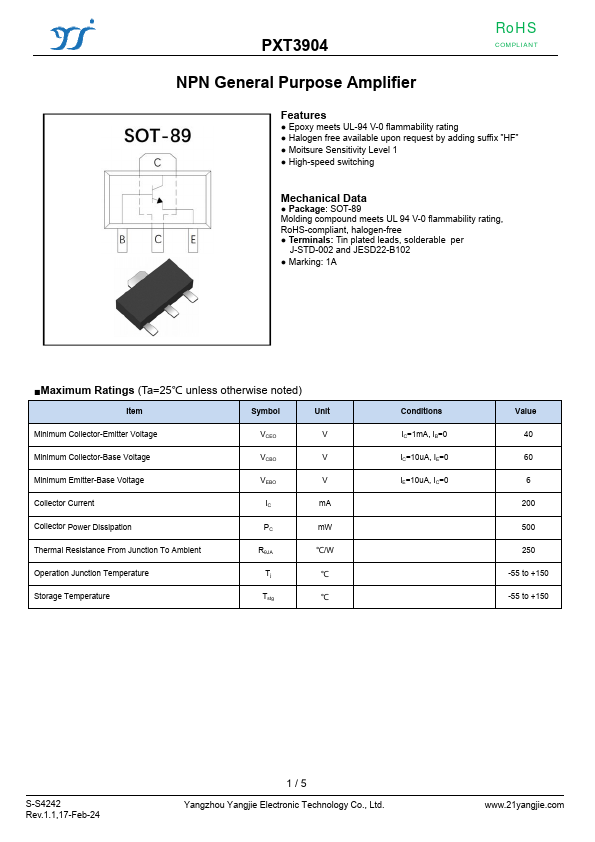

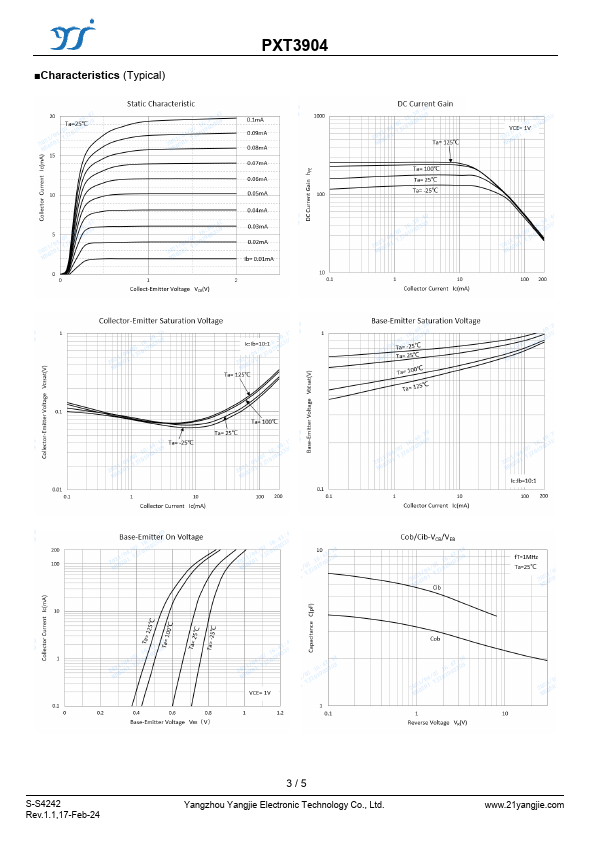

PXT3904 datasheet preview

Datasheet Details

Part number	PXT3904
Manufacturer	Yangjie Electronic
File Size	457.74 KB
Description	NPN General Purpose Amplifier
Datasheet	PXT3904-YangzhouYangjie.pdf

Key Features

Epoxy meets UL-94 V-0 flammability rating.
Halogen free available upon request by adding suffix ”HF”.
Moitsure Sensitivity Level 1.
High-speed switching Mechanical Data.
Package: SOT-89 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free.
Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102.
Marking: 1A.
Maximum Ratings (Ta=25℃ unless otherwise noted) Item Symbol Unit Minimum Collector-Emitter Voltage.
