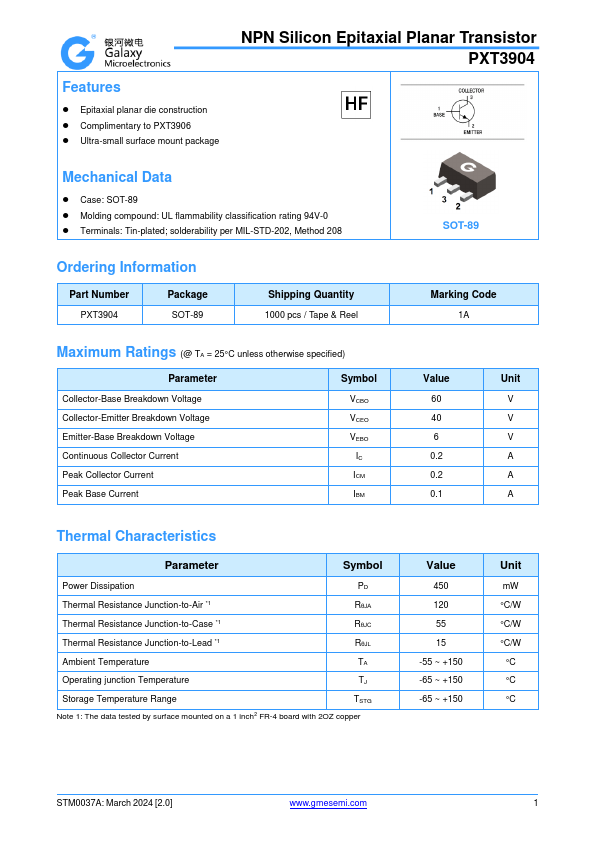

Features - Epitaxial planar die construction - plimentary to PXT3906 - Ultra-small surface mount package NPN Silicon Epitaxial Planar Transistor PXT3904 Mechanical Data - Case: SOT-89 - Molding pound: UL flammability classification rating 94V-0 - Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-89 Ordering Information Part Number PXT3904 Package SOT-89 Shipping Quantity 1000 pcs / Tape & Reel Marking Code 1A Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Continuous Collector Current Peak Collector Current Peak Base Current Symbol VCBO VCEO VEBO IC ICM IBM Value 60 40 6 0.2 0.2 0.1 Unit V V V A A A Thermal Characteristics Parameter Symbol Power Dissipation Thermal Resistance Junction-to-Air - 1 RθJA Thermal Resistance Junction-to-Case - 1 RθJC Thermal Resistance Junction-to-Lead - 1 RθJL Ambient Temperature Operating junction Temperature Storage Temperature...
