PXT3906 - PNP General Purpose Amplifier

Datasheet Summary

Features

  • Halogen free available upon request by adding suffix "-HF".
  • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information).
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisure Sensitivity Level 1.
  • Capable of 500mWatts of Power Dissipation.
  • Marking:2A Maximum Ratings Symbol Rating Rating Unit VCEO VCBO VEBO IC PD TJ TSTG Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collect.

📥 Download Datasheet

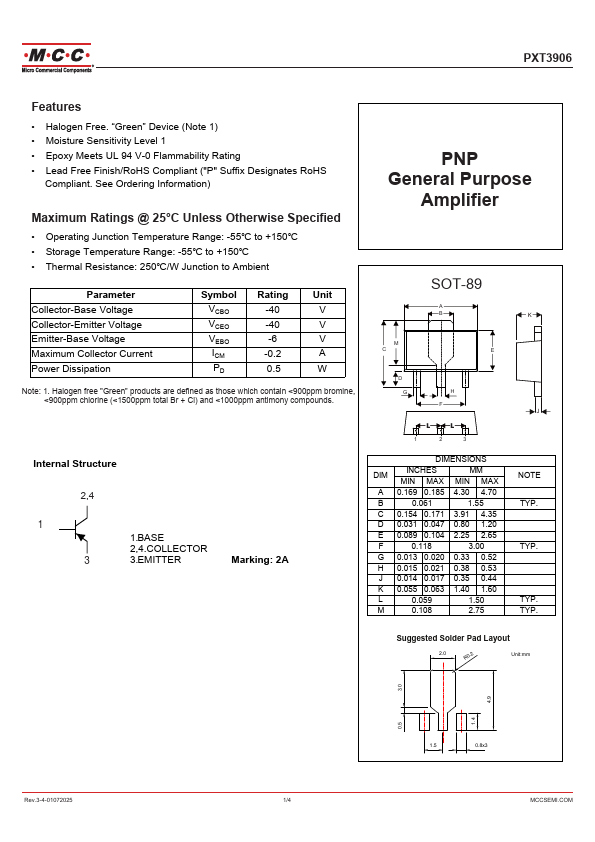

Datasheet preview – PXT3906

Datasheet Details

Part number PXT3906
Manufacturer MCC
File Size 202.27 KB
Description PNP General Purpose Amplifier
Datasheet download datasheet PXT3906 Datasheet

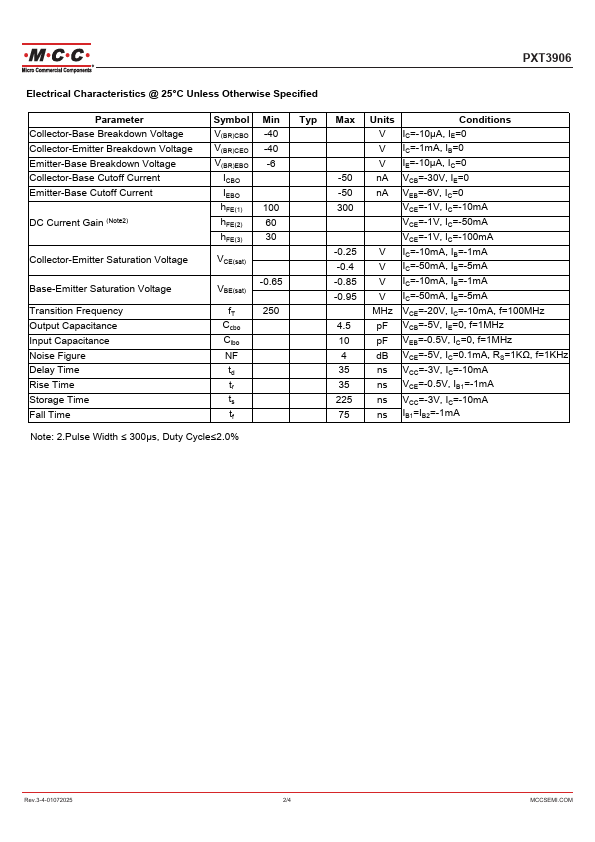

Additional preview pages of the PXT3906 datasheet.

📁 Similar Datasheet

  • PXT3906 - PNP switching transistor (NXP)
  • PXT3906 - PNP Transistor (JCET)
  • PXT3906 - PNP Transistors (Kexin)
  • PXT3906 - PNP Switching Transistor (GME)
  • PXT3904 - NPN switching transistor (NXP)
  • PXT3904 - NPN Switching Transistor (GME)
  • PXT3904 - NPN Transistors (Kexin)
  • PXT2222 - NPN switching transistor (NXP)
  • PXT2222A - NPN switching transistor (NXP)
  • PXT2222A - NPN Transistors (Kexin)
Other Datasheets by MCC
  • PXT2907A - PNP General Purpose Amplifier
  • PXT8050-C - NPN Silicon Plastic-Encapsulate Transistor
  • PXT8050-D - NPN Silicon Plastic-Encapsulate Transistor
  • PXT8050-D3 - NPN Silicon Plastic-Encapsulate Transistor
  • PXT8550-B - PNP Silicon Plastic-Encapsulate Transistor
  • PXT8550-C - PNP Silicon Plastic-Encapsulate Transistor
  • PXT8550-D - PNP Silicon Plastic-Encapsulate Transistor
  • PXT8550-D3 - PNP Silicon Plastic-Encapsulate Transistor

Full PDF Text Transcription

Click to expand full text
MCC TM   omponents Micro Commercial Components 20736 Marilla Street Chatsworth    !"# $ %    !"# Features • Halogen free available upon request by adding suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) • Epoxy meets UL 94 V-0 flammability rating • Moisure Sensitivity Level 1 • Capable of 500mWatts of Power Dissipation • Marking:2A Maximum Ratings Symbol Rating Rating Unit VCEO VCBO VEBO IC PD TJ TSTG Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current, Continuous Power Dissipation Operating Junction Temperature Storage Temperature -40 -40 -6.0 -0.2 0.
