RB551SH-30 - Schottky Barrier Diode

Features

  • High current rectifier schottky diode.
  • Low voltage.
  • Low inductance.
  • For power supply Schottky Barrier Diode RB551SH-30.

📥 Download Datasheet

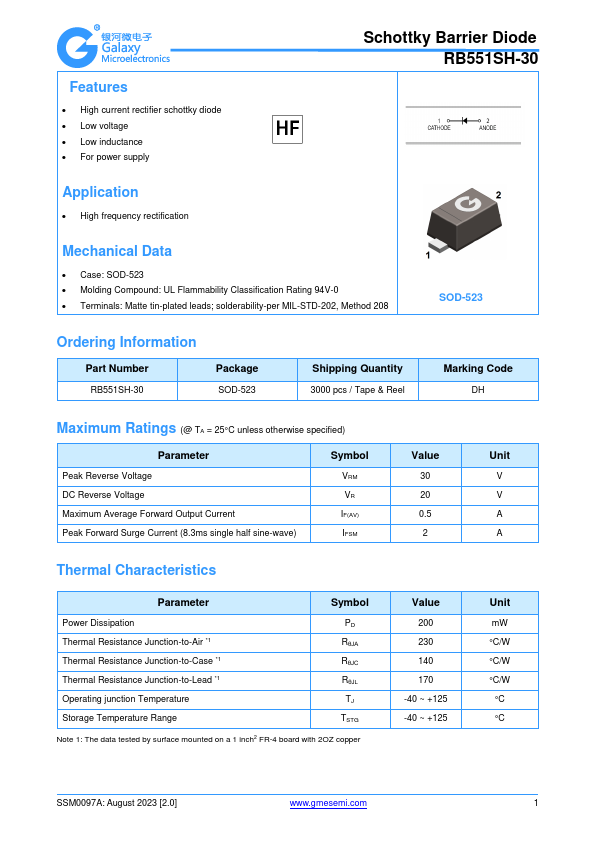

Datasheet preview – RB551SH-30

Datasheet Details

Part number RB551SH-30
Manufacturer GME
File Size 413.81 KB
Description Schottky Barrier Diode
Datasheet download datasheet RB551SH-30 Datasheet

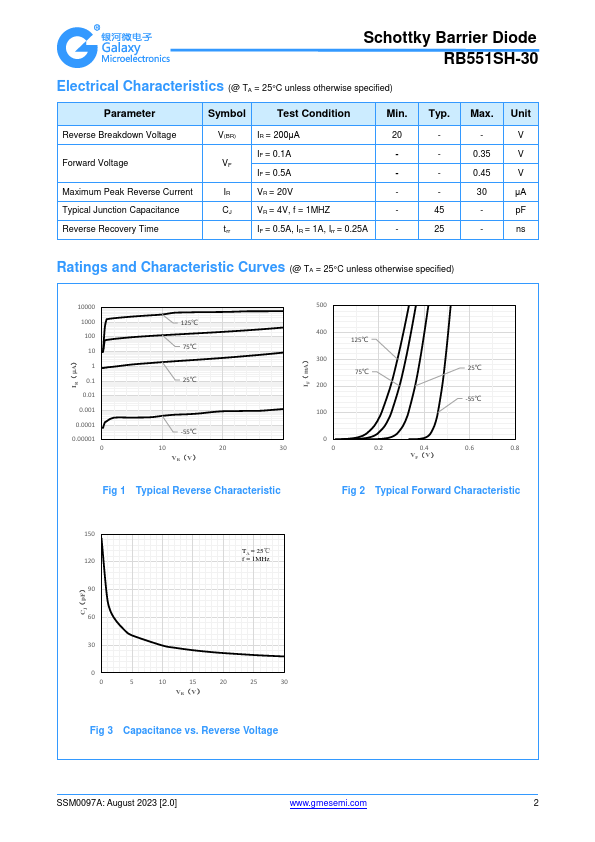

Additional preview pages of the RB551SH-30 datasheet.

📁 Similar Datasheet

  • RB551SS-30 - Schottky Barrier Diode (Rohm)
  • RB551V - 500mA Surface Mount Small Signal Diodes (CITC)
  • RB551V-30 - Schottky barrier Diode (JCET)
  • RB551V-30 - Schottky Barrier Diode (ROHM)
  • RB551V-30 - SMD Schottky Barrier Diodes (Comchip)
  • RB551V-30 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (LITE-ON)
  • RB551V-30 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • RB551V-30 - Surface Mount Schottky Rectifier (Bruckewell)
  • RB551V-30 - SCHOTTKY DIODES (AiT Components)
  • RB551V-30 - Schottky Diodes (TRANSYS)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text
Features  High current rectifier schottky diode  Low voltage  Low inductance  For power supply Schottky Barrier Diode RB551SH-30 Application  High frequency rectification Mechanical Data  Case: SOD-523  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-523 Ordering Information Part Number RB551SH-30 Package SOD-523 Shipping Quantity 3000 pcs / Tape & Reel Marking Code DH Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Peak Reverse Voltage DC Reverse Voltage Maximum Average Forward Output Current Peak Forward Surge Current (8.3ms single half sine-wave) Symbol VRM VR IF(AV) IFSM Value 30 20 0.
