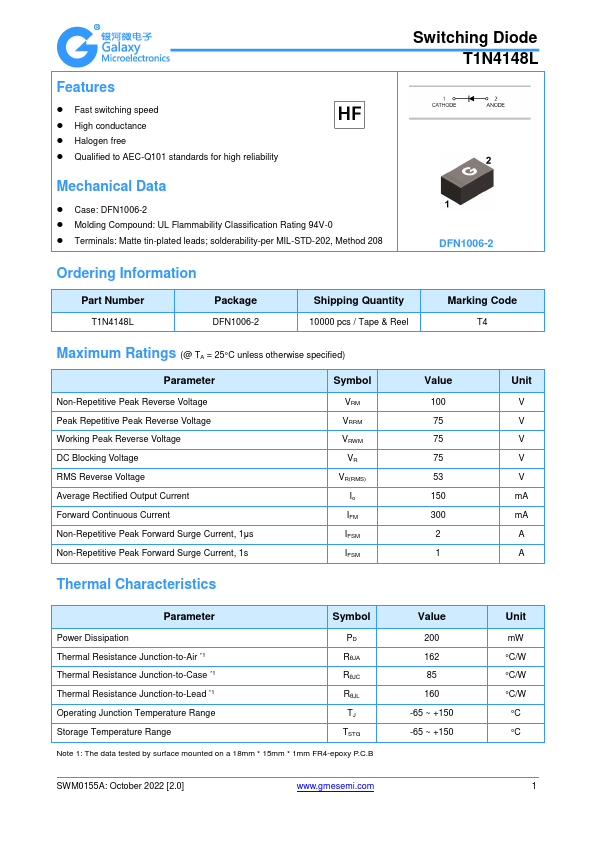

T1N4148L - Switching Diode

Key Features

  • Fast switching speed.
  • High conductance.
  • Halogen free.
  • Qualified to AEC-Q101 standards for high reliability Switching Diode T1N4148L Mechanical Data.
  • Case: DFN1006-2.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 DFN1006-2 Ordering Information Part Number T1N4148L Package DFN1006-2 Shipping Quantity 10000 pcs / Tape & Reel Marking Code T4 Maximum Ratings (@ TA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
T1N4001 General Rectifier Diodes SiPower
T1N4002 General Rectifier Diodes SiPower
T1N4003 General Rectifier Diodes SiPower
T1N4004 General Rectifier Diodes SiPower
T1N4005 General Rectifier Diodes SiPower

Other Datasheets by Galaxy Microelectronics

Part Number Description
T1N4148W Switching Diode
T1N4148WS Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features  Fast switching speed  High conductance  Halogen free  Qualified to AEC-Q101 standards for high reliability Switching Diode T1N4148L Mechanical Data  Case: DFN1006-2  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 DFN1006-2 Ordering Information Part Number T1N4148L Package DFN1006-2 Shipping Quantity 10000 pcs / Tape & Reel Marking Code T4 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Forward Continuous Current Non-Repetitive Peak Forward Surge Current, 1μs Non-Repetitive Peak For
