T1N4148WS - Switching Diode

Key Features

  • Fast switching speed.
  • High conductance.
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards Mechanical Data.
  • Case: SOD-323.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-323 Ordering Information Part Number T1N4148WS Package SOD-323 Shipping Quantity 3000 pcs / Tape & Reel Marking Code T4 Maximum Ratings (@ TA = 25°C unless otherwise specifie.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
T1N4001 General Rectifier Diodes SiPower
T1N4002 General Rectifier Diodes SiPower
T1N4003 General Rectifier Diodes SiPower
T1N4004 General Rectifier Diodes SiPower
T1N4005 General Rectifier Diodes SiPower

Other Datasheets by Galaxy Microelectronics

Part Number Description
T1N4148W Switching Diode
T1N4148L Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

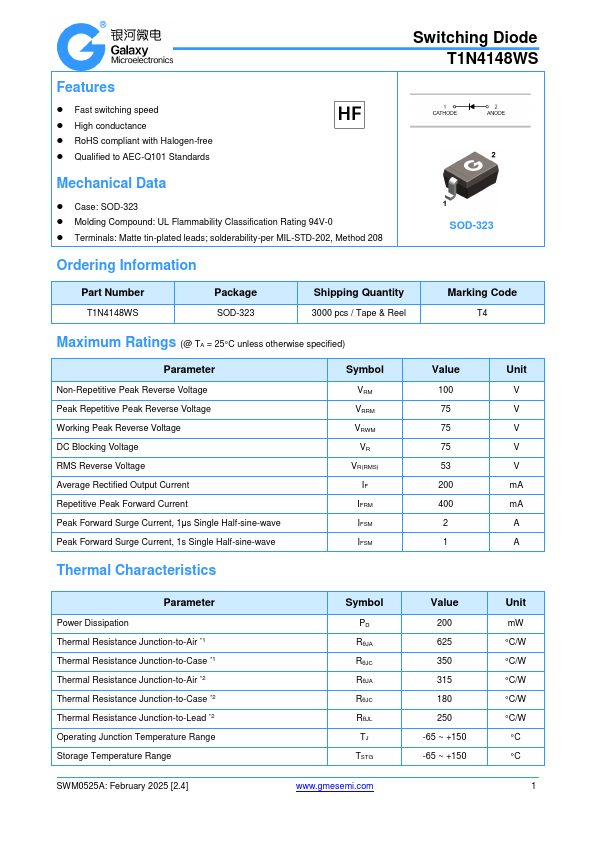

Switching Diode T1N4148WS Features  Fast switching speed  High conductance  RoHS compliant with Halogen-free  Qualified to AEC-Q101 Standards Mechanical Data  Case: SOD-323  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-323 Ordering Information Part Number T1N4148WS Package SOD-323 Shipping Quantity 3000 pcs / Tape & Reel Marking Code T4 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Repetitive Peak Forward Current Peak Forward Surge Current, 1μs Single Half-sine-wave Peak Forward Surg
