T1N4148W - Switching Diode

Features

  • Fast switching speed.
  • High conductance.
  • MSL 1.
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards Switching Diode T1N4148W Mechanical Data.
  • Case: SOD-123.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-123 Ordering Information Part Number T1N4148W Package SOD-123 Shipping Quantity 3000 pcs / Tape & Reel Marking Code T4 Maximum Ratings (.

📥 Download Datasheet

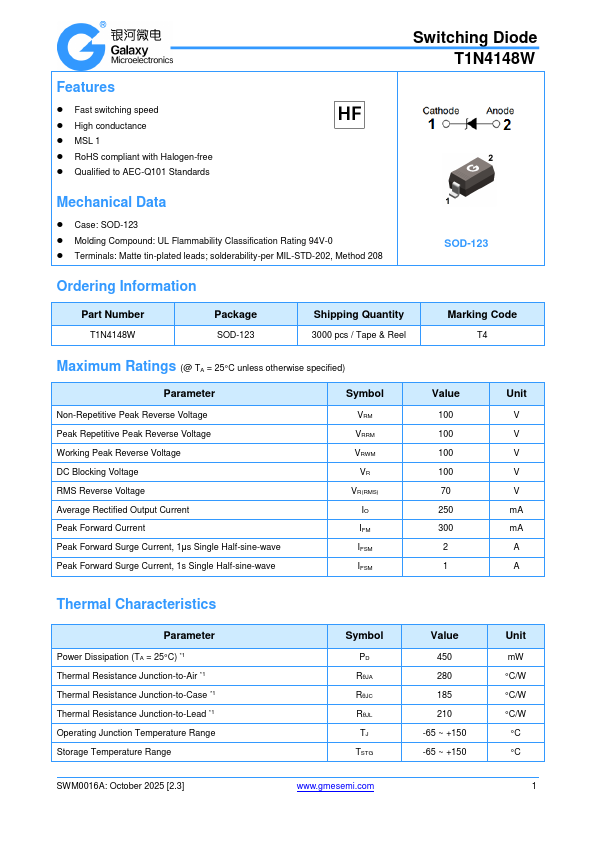

Datasheet preview – T1N4148W

📁 Similar Datasheet

  • T1N4001 - General Rectifier Diodes (SiPower)
  • T1N4002 - General Rectifier Diodes (SiPower)
  • T1N4003 - General Rectifier Diodes (SiPower)
  • T1N4004 - General Rectifier Diodes (SiPower)
  • T1N4005 - General Rectifier Diodes (SiPower)
  • T1N4006 - General Rectifier Diodes (SiPower)
  • T1N4007 - General Rectifier Diodes (SiPower)
  • T1N4007GF - General Rectifier Diodes (SiPower)
  • T1N5391 - General Rectifier Diodes (SiPower)
  • T1N5392 - General Rectifier Diodes (SiPower)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text
Features  Fast switching speed  High conductance  MSL 1  RoHS compliant with Halogen-free  Qualified to AEC-Q101 Standards Switching Diode T1N4148W Mechanical Data  Case: SOD-123  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-123 Ordering Information Part Number T1N4148W Package SOD-123 Shipping Quantity 3000 pcs / Tape & Reel Marking Code T4 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Peak Forward Current Peak Forward Surge Current, 1μs Single Half-sine-wave Peak Forward Surge Cur
