SF29 Datasheet (Good-Ark Semiconductor)

Part SF29
Description Superfast Rectifiers
Manufacturer Good-Ark Semiconductor
Size 541.52 KB
SF29 Datasheet (PDF) Download
Pricing from 4.4 USD, available from Verical and CoreStaff.
🏠
Good-Ark Semiconductor

SF29 Overview

Key Specifications

Mount Type: Surface Mount
Height: 4 mm
Length: 7.3 mm
Max Operating Temp: 125 °C

Key Features

  • Low leakage current
  • Low forward voltage drop
  • Glass passivated chip junction
  • For general purpose applications
  • Moisture sensitivity: level 1, per J-STD-020

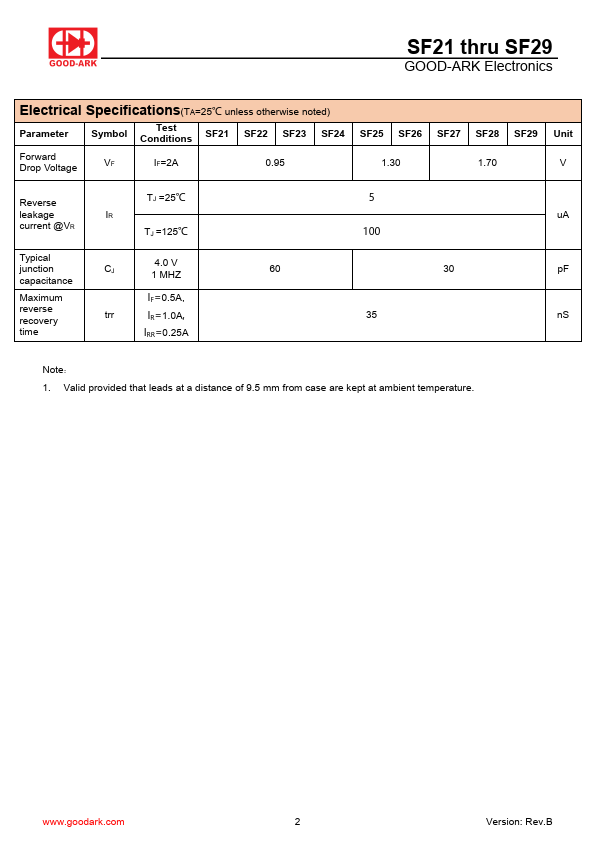

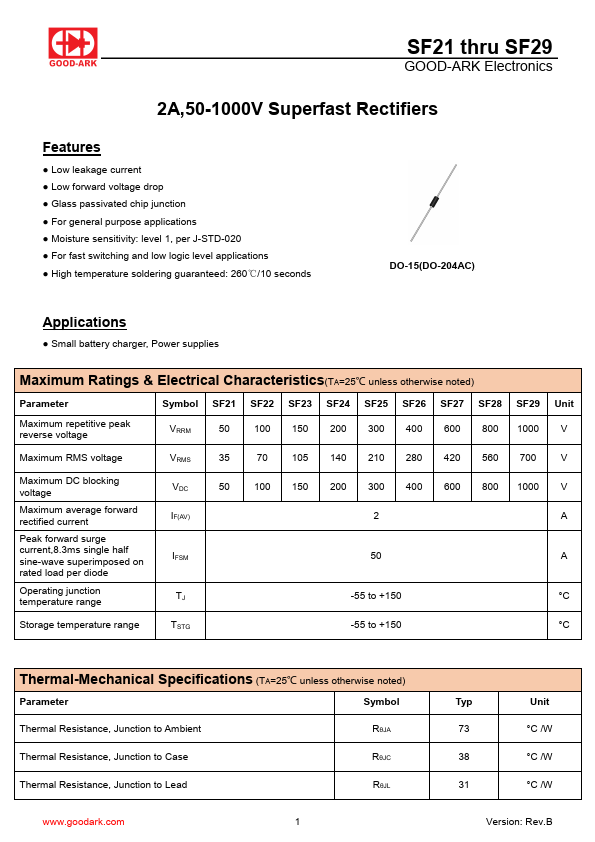

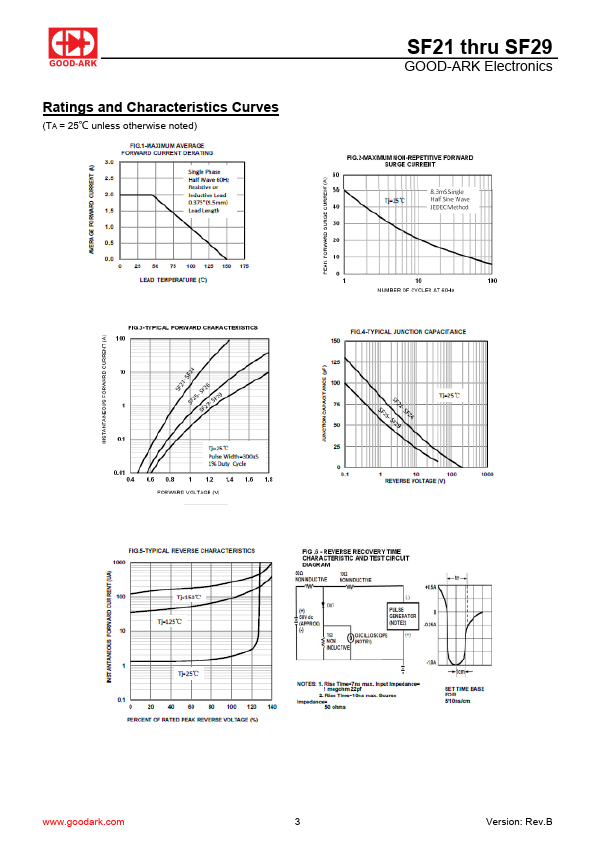

SF29 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Verical 2000 100+ : 4.4 USD
300+ : 3.9176 USD
500+ : 3.7765 USD
1000+ : 3.2 USD		 View Offer
CoreStaff 790 1+ : 8.502 USD
5+ : 6.625 USD
10+ : 6.011 USD
30+ : 5.602 USD		 View Offer
