SF26
SF26 is Superfast Rectifiers manufactured by Good-Ark Semiconductor.
- Part of the SF21 comparator family.
- Part of the SF21 comparator family.

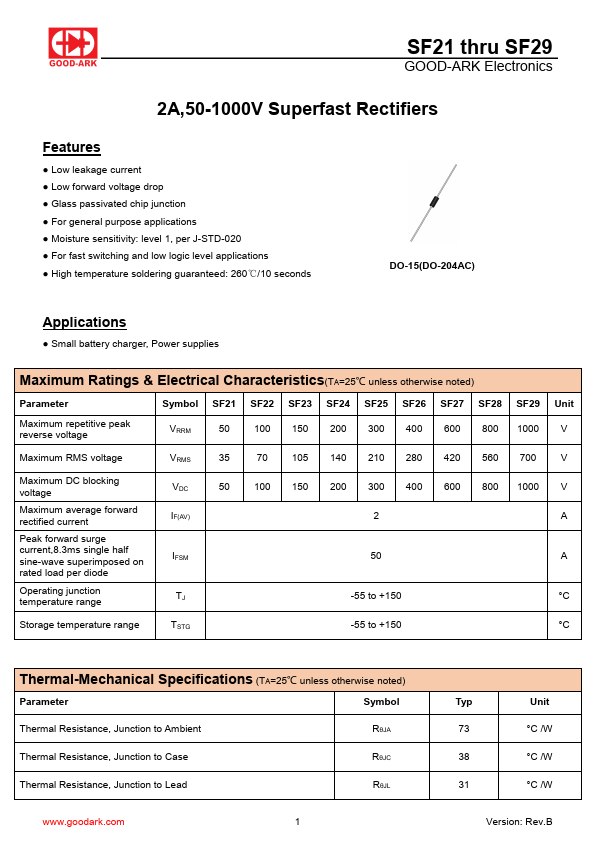

SF21 thru SF29
GOOD-ARK Electronics
2A,50-1000V Superfast Rectifiers
Features
- Low leakage current
- Low forward voltage drop
- Glass passivated chip junction
- For general purpose applications
- Moisture sensitivity: level 1, per J-STD-020
- For fast switching and low logic level applications
- High temperature soldering guaranteed: 260℃/10 seconds
DO-15(DO-204AC)
Applications
- Small battery charger, Power supplies
Maximum Ratings & Electrical Characteristics(TA=25℃ unless otherwise noted)
Parameter
Maximum repetitive peak reverse voltage
Symbol SF21 SF22 SF23 SF24 SF25 SF26 SF27 SF28 SF29 Unit
VRRM
50 100 150 200 300 400 600 800 1000 V
Maximum RMS voltage
VRMS
70 105...
