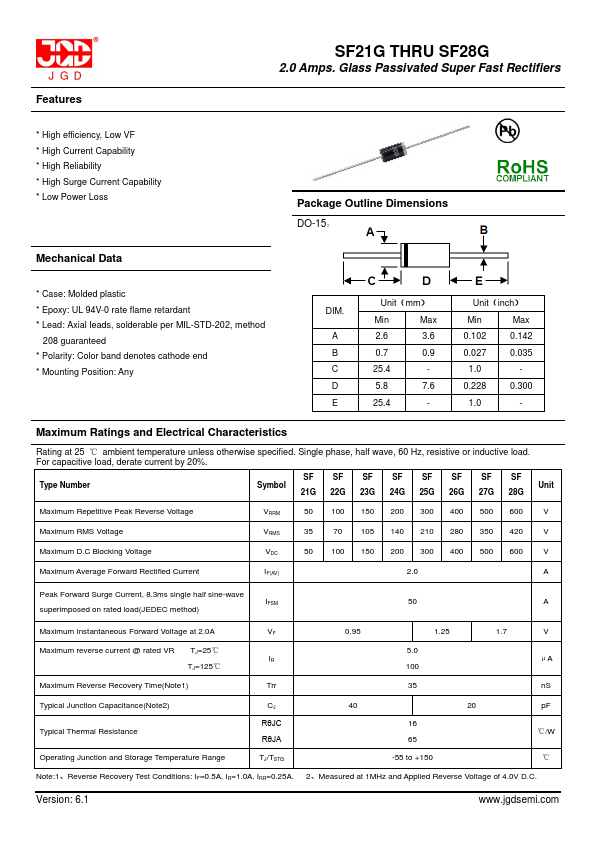

SF26G Overview
Features SF21G THRU SF28G 2.0 Amps. Glass Passivated Super Fast Rectifiers High efficiency, Low VF High Current Capability High Reliability High Surge Current Capability Low Power Loss Package Outline Dimensions DO-15： Case: UL 94V-0 rate flame retardant Lead:.
SF26G Key Features
- High efficiency, Low VF
- High Current Capability
- High Reliability
- High Surge Current Capability
- Low Power Loss
- Case: Molded plastic
- Epoxy: UL 94V-0 rate flame retardant
- Lead: Axial leads, solderable per MIL-STD-202, method
- Polarity: Color band denotes cathode end
- Mounting Position: Any
