SF26
SF26 is SUPER FAST RECTIFIER DIODES manufactured by EIC Semiconductor.
- Part of the SF21 comparator family.
- Part of the SF21 comparator family.
.eicsemi.

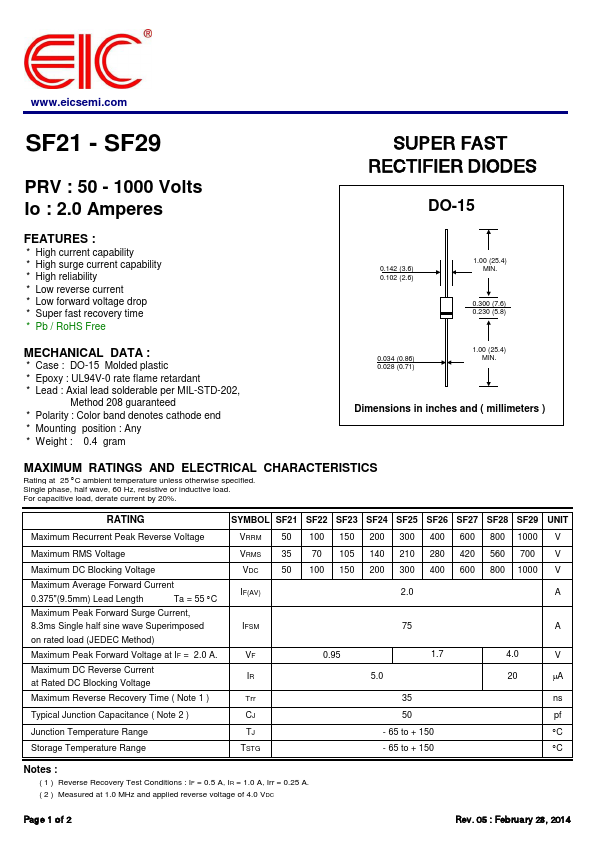

SF21
- SF29
PRV : 50
- 1000 Volts Io : 2.0 Amperes
SUPER FAST RECTIFIER DIODES
DO-15
Features
:
- High current capability
- High surge current capability
- High reliability
- Low reverse current
- Low forward voltage drop
- Super fast recovery time
- Pb / RoHS Free
0.142 (3.6) 0.102 (2.6)
1.00 (25.4) MIN.
0.300 (7.6) 0.230 (5.8)
MECHANICAL DATA :
- Case : DO-15 Molded plastic
- Epoxy : UL94V-0 rate flame retardant
- Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
- Polarity : Color band denotes cathode end
- Mounting position : Any
- Weight : 0.4 gram
0.034 (0.86) 0.028 (0.71)
1.00 (25.4) MIN.
Dimensions in inches and ( millimeters...
